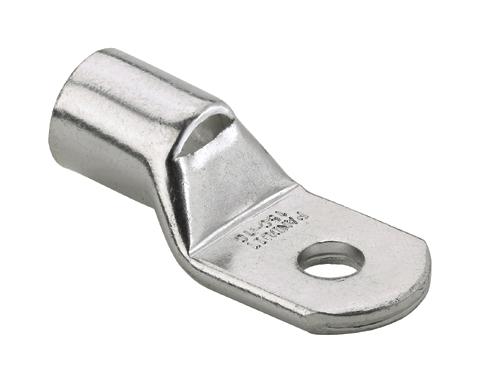

Panduit LCMA9512L Copper Tube Wire Connector
The PANDUIT LCMA series wire connectors are designed for secure and reliable terminations of stranded copper wire. These connectors feature a high conductivity seamless copper tube construction with a tin plating for corrosion resistance and excellent electrical contact. They are suitable for a wide range of industrial applications requiring robust and dependable wire connections, and are UL listed for applications up to 35kv. Proper voltage stress relief is essential for applications exceeding 2000 volts; consult the cable manufacturer for specific instructions.
Panduit LCMA9512L Copper Tube Wire Connector Specifications:
- Material: High conductivity seamless copper tube
- Plating: Tin plated
- Wire Type: Class 2R Stranded Copper
- UL Listing: Yes, up to 35kv
- UL Temperature Rating: 90 C
- CSA Certification: Yes
- Stud Size: M12
- Wire Strip Length: 26.0
- Panduit Die Index No: P54
- l tolerance: ±2.76
- o tolerance: ±.50
- i tolerance: ±.50
- a tolerance: ±2.25
- n tolerance: ±2.25
- d tolerance: ±.50
- b tolerance: ±2.25
- m (ref): 42.0
- t tolerance: 3.00 ± .40
Buy the LCMA95-12-L PANDUIT Copper Tube Wire Connector | myMectronic
Purchase the PANDUIT LCMA95-12-L wire connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Panduit LCMA9512L?
You can click on the BUY or RFQ button to purchase LCMA9512L from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part LCMA9512L?
You can download the LCMA9512L datasheet or visit the Panduit website for support.
Who is the manufacturer of LCMA9512L?
Panduit
