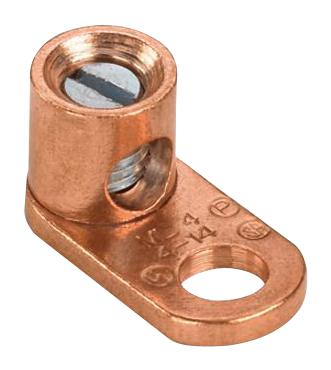

Panduit ML4CY Straight Tongue Barrel Post
The PANDUIT ML4-CY is a robust barrel post lug connector engineered for reliable electrical connections in various industrial applications. Constructed from high-strength electrolytic copper, this connector provides premium electrical and mechanical performance. Its compact design saves space, while the wide wire range capability minimizes inventory needs. The plated steel set screw ensures a durable and secure connection between the conductor and connector, and the inspection window allows for visual confirmation of full conductor insertion. UL Listed for use up to 600V and 90°C, the ML4-CY is suitable for a wide range of power distribution and equipment grounding applications.
Panduit ML4CY Straight Tongue Barrel Post Specifications:
- Material: High strength electrolytic copper
- Plating: Plated steel set screw
- Voltage Rating: Up to 600 V
- Temperature Rating: 90°C
- Conductor Range: #14 SOL – #4 STR
- Stud Hole Size: 1/4 In.
- Hex Key Size: 1/4 In.
- Length (L): 1.11 In.
- Width (W): 0.54 In.
- Height (H): 0.55 In.
- Tongue Thickness (T): 0.08 In.
- Post Length (P): 0.48 In.
- Package Quantity: 100
