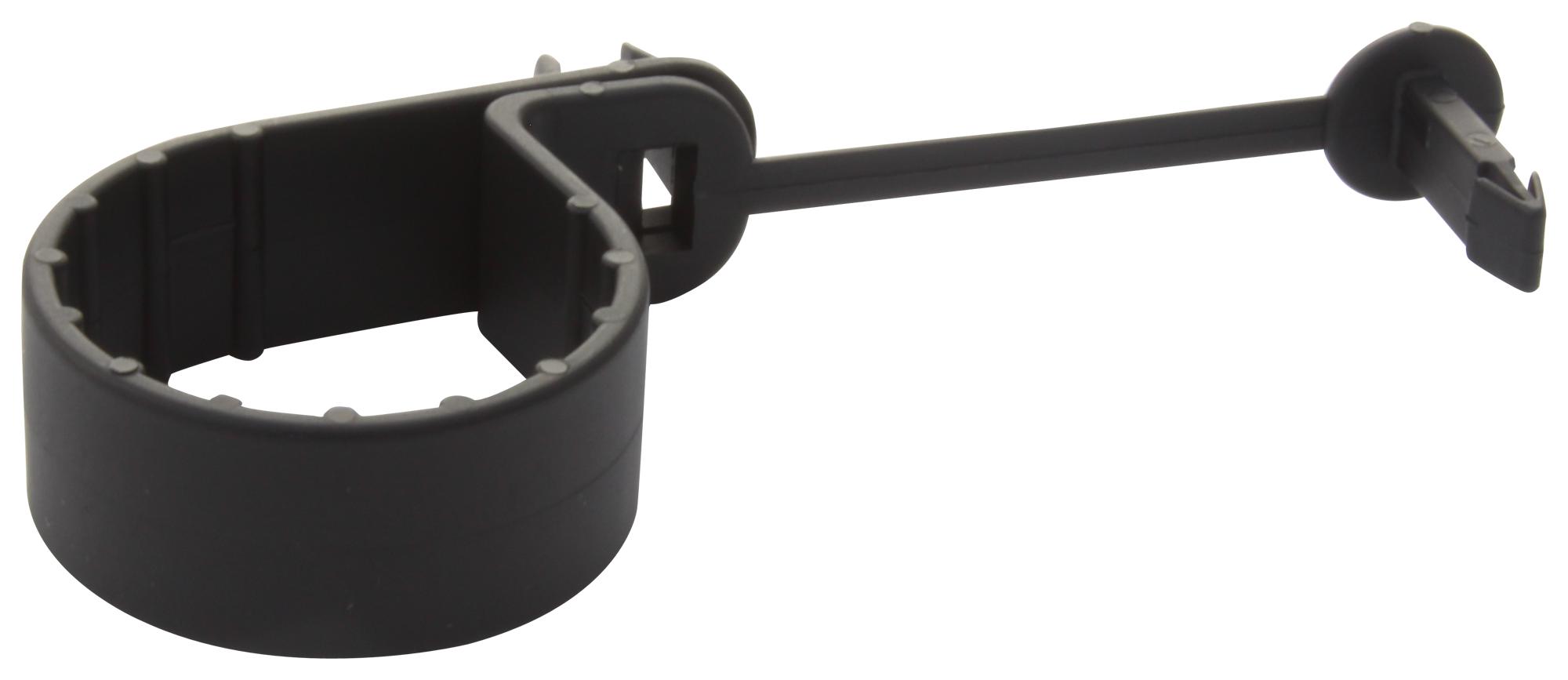

Panduit PC125H25DC0 Heavy Duty Cable Clamp
PANDUIT Pan-CLamp Heavy Duty Fixed Diameter Clamps are durable, impact-modified Nylon 6.6 fittings designed to secure wires, cables, and hydraulic hoses in transportation and outdoor applications. These clamps offer easy installation without fasteners, featuring eight sizes from 3/8 inch to 1 1/4 inch, with integrated ribs for a secure grip and resistance to fluids, chemicals, and temperature extremes. Ideal for vehicles, trucks, and chassis, they provide reliable hold with shear strength over 125 lbs and tension strength of 70 lbs, ensuring flexible, cost-effective cable management.
Panduit PC125H25DC0 Heavy Duty Cable Clamp Specifications:
- Material: Impact modified weather resistant Nylon 6.6
- Color: Black
- Flammability: Meets UL94 HB, passes FMVSS 302
- Temperature Range: -76°F (-60°C) to 185°F (85°C)
- Chemical Resistance: Diesel fuel, gasoline, hydraulic fluid, transmission fluids, sodium chloride solution
- Shear Strength: Over 125 lbs (56.7 kg)
- Tensile Strength: 70 lbs (31.8 kg)
- Sizes: 3/8 inch (9.5 mm) to 1 1/4 inch (31.8 mm)
- Panel Hole Size Range: .275 to .288 inches (7.0 to 7.3 mm)
- Panel Thickness Range: .055 to .140 inches (1.4 to 3.6 mm)
Buy the Buy Panduit Heavy Duty Fixed Diameter Clamps Part Number PC125H25DC0 Online
Order the Panduit PC125H25DC0 Heavy Duty Fixed Diameter Clamp online today for reliable cable, wire, and hose securing solutions. Designed from impact-resistant Nylon 6.6, these clamps provide excellent weather resistance, chemical durability, and temperature tolerance. They install easily without fasteners, saving time and reducing costs. Suitable for transportation, outdoor, and chassis applications, their secure grip prevents rotation, ensuring safe, long-lasting cable management. Perfect for light and heavy vehicles, trucks, and special equipment needing dependable securing without complex assembly.
Buy Panduit PC125H25DC0 now and experience unmatched reliability and performance in secure cable management for transportation vehicles.
Frequently Asked Questions
Where can I buy Panduit PC125H25DC0?
You can click on the BUY or RFQ button to purchase PC125H25DC0 from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part PC125H25DC0?
You can download the PC125H25DC0 datasheet or visit the Panduit website for support.
Who is the manufacturer of PC125H25DC0?
Panduit
