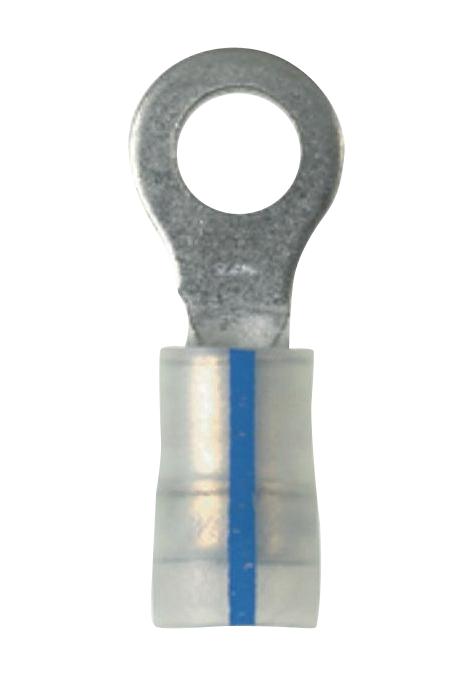

Panduit PK1410RC Ring Terminal
PANDUIT PK14-10R-C ring terminals are designed for reliable electrical connections, particularly in environments with high vibration. These terminals are UL and CSA rated up to 600V and feature a color-coded stripe for easy wire range identification. The ring tongue design ensures a secure connection, while the metal insulation grip sleeve protects the crimp joint. Suitable for various applications including nuclear containment areas and high-temperature environments up to 300°F (150°C).
Panduit PK1410RC Ring Terminal Specifications:
- Wire Range: 18 – 14 AWG
- Color Code: Blue Stripe
- Stock Thickness (In.): 0.03
- Max. Ins. (In.): 0.162
- Stud Size: #10
- L (In.): 0.87
- W (In.): 0.31
- C (In.): 0.29
- Recommended Installation Tool: CT-100A, CT-600-A‡, CT-1550‡, CT-1551‡, CT-2500‡
- Std. Pkg. Qty.: 100
- Std. Ctn. Qty.: 500
- UL CSA Rated: Up to 600 V per UL 486A/B
- Classified: Class 1E in accordance with IEEE 323-2003
- Material: KYNAR
