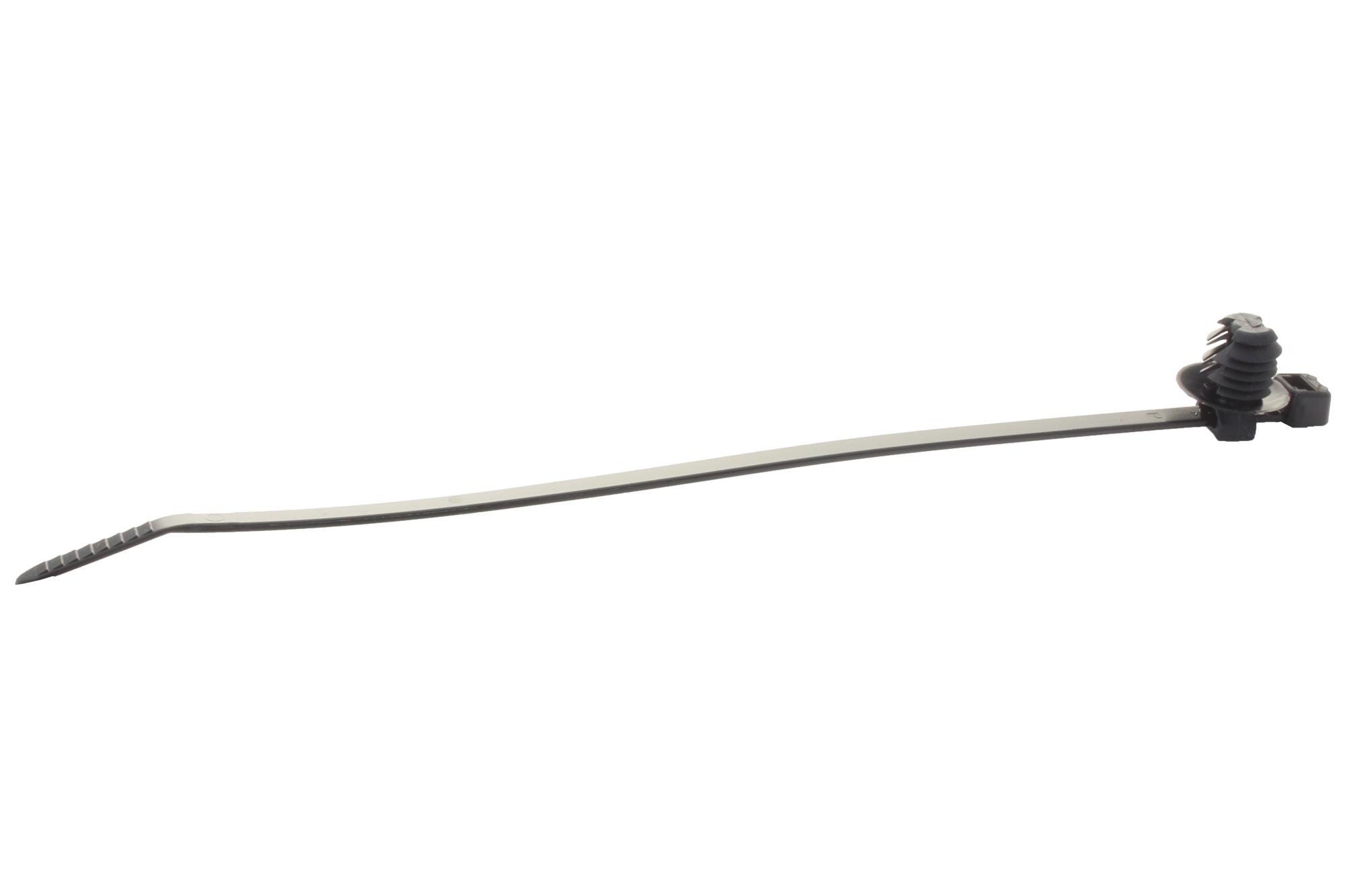

Panduit PUM1002SD30 Push Mount
PANDUIT push mounts with umbrellas and assemblies are designed for secure wiring in automotive and industrial applications. Made from heat-stabilized Nylon 6.6, they resist chemicals, heat, and impact. These mounts accommodate panel holes from 4.6mm to 10mm, with features like a sealed umbrella design to prevent dust and moisture ingress, and a rotating barb for flexible installation. Models like PUM-100-M30 offer reliable retention for wire gauges of 12 AWG, ensuring easy installation with low insertion force and high pull-out strength. Suitable for vehicles, marine, white goods, heavy machinery, and transit systems, they meet industry standards and environmental compliance.
Panduit PUM1002SD30 Push Mount Specifications:
- Material: Heat Stabilized Nylon 6.6
- Flammability: UL94 V-2, FMVSS 302
- Color: Black
- Application temperature range: -60°C to 115°C (-76°F to 239°F)
- Panel hole diameter range: 4.6mm to 10.0mm (0.18" - 0.39")
- Tensile strength: Designed for minimal pull-out with 50 lb force capacity
- Retention: Firm, no more than 45° rotation, minimum wire gauge of 12 AWG
- Insertion force: No more than 14 pounds
- Chemical resistance: Excellent to fluids like gasoline, jet fuel, hydraulic and transmission fluids
- Certifications: UL94 V-2, FMVSS 302
- Compatibility: Supports standard Pan-Ty® cable ties up to 50 lb tensile strength, with expanded slot for 120 lb ties
- Design: Umbrella fir tree locking, 360° rotatable barb for wider application
Buy the Panduit Series Push Mounts Umbrella: PUM-100-M30
Purchase Panduit push mounts with umbrellas like PUM-100-M30 online for reliable, easy-to-install wire routing in automotive, marine, and industrial environments. Made from heat-stabilized Nylon 6.6, these mounts resist chemicals and temperature extremes from -60°C to 115°C. They feature a sealed umbrella design to protect against dust and moisture, a rotating barb for flexible positioning, and seamlessly support standard cable ties up to 50 pounds, ensuring a secure, vibration-resistant connection. Ideal for mass transit, heavy equipment, and white goods, these mounts meet industry standards and EU and US environmental compliance. Order now to streamline wiring installations efficiently and reliably.
Get Panduit PUM-100-M30 today—built for secure wire harness integration with robust chemical and temperature resistance.
Frequently Asked Questions
Where can I buy Panduit PUM1002SD30?
You can click on the BUY or RFQ button to purchase PUM1002SD30 from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part PUM1002SD30?
You can download the PUM1002SD30 datasheet or visit the Panduit website for support.
Who is the manufacturer of PUM1002SD30?
Panduit
