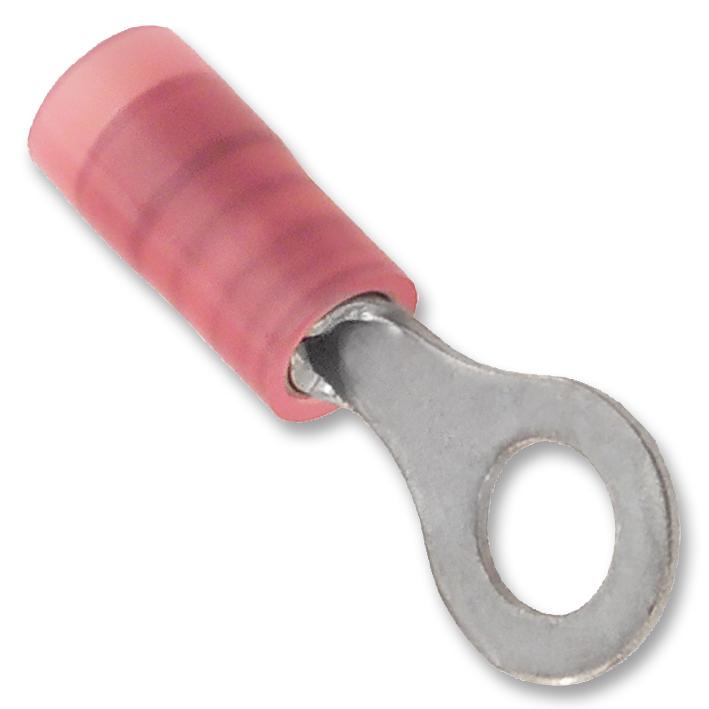

Panduit PV1810RCY Ring Terminal Vinyl Insulated
The PANDUIT PV18-10R-CY ring terminal is designed for secure and reliable electrical connections. Its vinyl insulation provides excellent protection, while the funnel entry simplifies the termination process. Internal barrel serrations ensure consistent wire contact and maximum tensile strength, making it ideal for applications requiring high vibration resistance. The brazed seam protects the terminal barrel, ensuring longevity and preventing splitting during crimping. This terminal is suitable for a range of wire gauges and stud sizes, making it versatile for various industrial and commercial applications.
Panduit PV1810RCY Ring Terminal Vinyl Insulated Specifications:
- Wire Range: 22 – 18 AWG
- Color Code: Red
- Stock Thickness (In.): 0.03
- Max Ins (In.): 0.150
- Stud Size: #10
- Figure Dimensions L (In.): 0.94
- Figure Dimensions W (In.): 0.31
- Figure Dimensions C (In.): 0.27
- Recommended Installation Tool: CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500
- Std Pkg Qty: 100
- Std Ctn Qty: 500
Buy the PV18-10R-CY PANDUIT Ring Terminal Vinyl Insulated | myMectronic
Purchase the PANDUIT PV18-10R-CY ring terminal securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Panduit PV1810RCY?
You can click on the BUY or RFQ button to purchase PV1810RCY from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part PV1810RCY?
You can download the PV1810RCY datasheet or visit the Panduit website for support.
Who is the manufacturer of PV1810RCY?
Panduit
