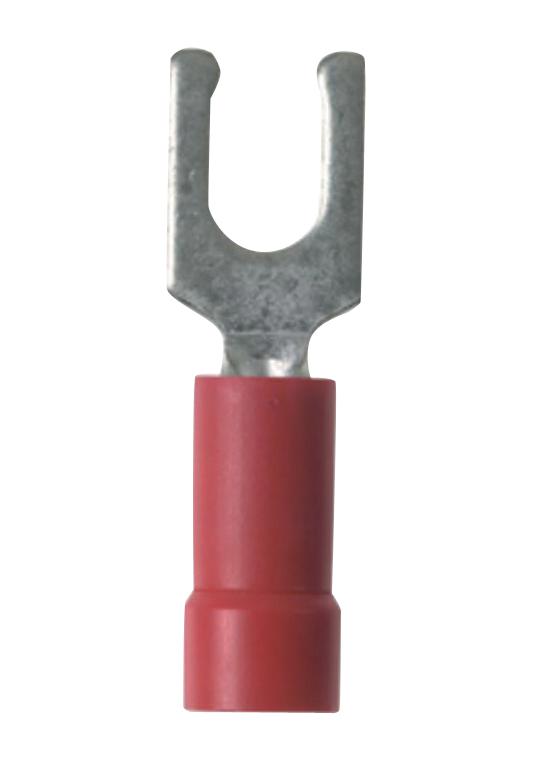

Panduit PV188LFCY Locking Fork Terminal
The PANDUIT PV18-8LF-CY locking fork terminal provides a secure and reliable connection for various wire gauges. Its locking mechanism ensures the connection remains stable, while the internal barrel serrations maximize wire contact and tensile strength. The fork design simplifies installation, eliminating the need to remove fasteners. This terminal is suitable for applications requiring a robust and easy-to-install connection, and is UL and CSA rated for safety and performance.
Panduit PV188LFCY Locking Fork Terminal Specifications:
- Wire Range: 22 – 18 AWG
- Color Code: Red
- Stock Thickness (In.): 0.03
- Max Insulation (In.): 0.150
- Stud Size: #8
- L (In.): 0.89
- W (In.): 0.29
- C (In.): 0.26
- Recommended Installation Tool: CT-100A‡, CT-600-A‡, CT-1550‡, CT-1551‡, CT-2500‡
- Std Pkg Qty: 100
- Std Ctn Qty: 500
- UL Flammability: UL 94V-2/HB
- Maximum Insulation Temperature: 221°F (105°C)
- UL and CSA Rated: Up to 600 V per UL 486A/B
Buy the PV18-8LF-CY PANDUIT Locking Fork Terminal | myMectronic
Purchase the PANDUIT PV18-8LF-CY locking fork terminal securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Panduit PV188LFCY?
You can click on the BUY or RFQ button to purchase PV188LFCY from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part PV188LFCY?
You can download the PV188LFCY datasheet or visit the Panduit website for support.
Who is the manufacturer of PV188LFCY?
Panduit
