Panduit S100X225VAC Wire and Cable Label

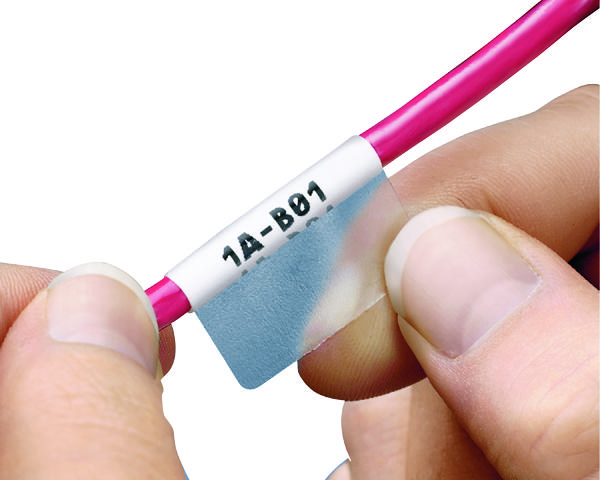

This thermal transfer self-laminating label cassette features a white printable area with a clear overlaminate to protect the legend, making it easy to identify. Designed specifically for wire and cable applications, it includes an integrated memory device that automatically formats the labels, recalls the last legend used, and tracks remaining labels. Compatible with LS8E and LS8EQ printers. The label material is RoHS compliant, made of high-quality vinyl film with pressure-sensitive acrylic adhesive. It withstands temperatures from -50°F to 225°F and offers excellent chemical and UV resistance for durable wiring identification.
Panduit S100X225VAC Wire and Cable Label Specifications:
- Material: Vinyl film with acrylic pressure-sensitive adhesive
- Thickness: 3.2 +/- 0.4 mils
- Print Method: Thermal transfer
- Color: Clear film with white printable area
- Temperature Range: -50°F to 225°F (-45.6°C to 107°C)
- Service Temperature: Up to 225°F
- Minimum Application Temperature: 50°F
- Peel Adhesion: 28 oz/in minimum (15 min), 40 oz/in (24 hrs)
- Shear Adhesion: 3 hours minimum
- Tensile Strength: 8 +/- 1.5 lbs/in
- Elongation: 150% +/- 10%
- UV Resistance: Tested for 3000 hours with no change
- Dielectric Strength: 2,133 Volts/Mil
- Chemical Resistance: No effect from water, oils, alcohols, solvents
- Storage Conditions: Store at 70°F and 50% RH
- Compatibility: LS8E and LS8EQ printers
Buy the Buy Panduit Wire and Cable Label Part Number S100X225VAC Online
Order Panduit wire and cable label cassette S100X225VAC online today to enjoy high-quality, durable, and UV-resistant labels designed for wire and cable identification. Featuring a clear overlaminate, these labels provide excellent chemical and weather resistance, ensuring longevity in harsh environments. Compatible with LS8E and LS8EQ printers, they include an embedded memory device that automatically formats labels, recalls previous legends, and tracks remaining labels. Trust Panduit’s proven reliability for your wire labeling needs and streamline your installation process with a simple online purchase.
Buy Panduit S100X225VAC now and ensure durable, UV-resistant wire and cable markings with integrated memory and easy-to-use features.
