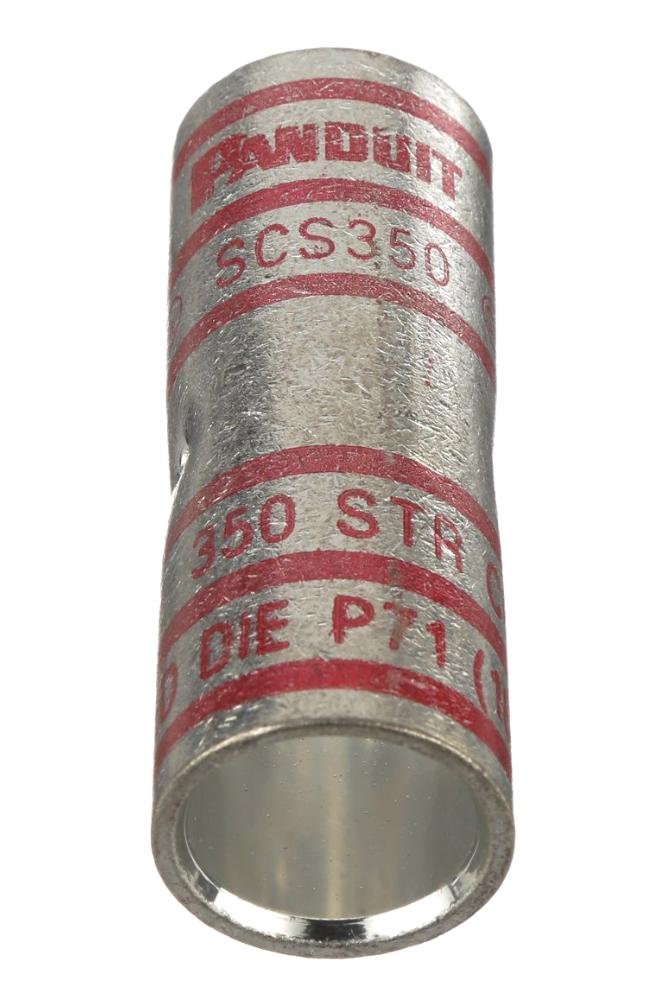

Panduit SCS350X Copper Butt Splice Connector
The SCS350-X is a high-quality copper butt splice connector designed for use with stranded copper conductors. It features a color-coded barrel for easy identification, a durable tin-plated finish to inhibit corrosion, and is UL Listed and CSA Certified to 35 KV for reliable electrical connections. Suitable for wire sizes up to 3/0 AWG, it includes internal wire stops to prevent conductor over-insertion and is tested by Telcordia, meeting NEBS Level 3 standards. Approved by the American Bureau of Shipping, this splice connector ensures secure and compliant electrical joins in industrial wiring systems.
Panduit SCS350X Copper Butt Splice Connector Specifications:
- Color-coded barrel: Red
- Wire Range: Up to 3/0 AWG
- O.D. (Outer Diameter): 1.87 inches
- Length: 1.87 inches
- Material: Tin-plated, corrosion-inhibited copper
- Voltage Rating: 35 KV
- Temperature Rating: Up to 90°C
- Certification: UL Listed, CSA Certified, Telcordia tested, NEBS Level 3 compliant
- Approved by: American Bureau of Shipping
Buy the Buy Panduit SCS350X Part Number SCS350X Online
Purchase the Panduit SCS350X copper butt splice connector online today to ensure secure, reliable, and compliant electrical connections. Designed for stranded copper conductors up to 3/0 AWG, it features a durable tin-plated finish to prevent corrosion and includes internal wire stops to prevent over-insertion. Certified by UL and CSA for 35 KV, the connector is tested by Telcordia and approved by the American Bureau of Shipping. This high-quality splice ensures excellent performance in industrial electrical systems and offers quick, safe installation to meet strict safety standards.
Buy Panduit SCS350X now and experience unmatched reliability and performance in electrical splicing with corrosion-resistant, UL-listed connectors.
Frequently Asked Questions
Where can I buy Panduit SCS350X?
You can click on the BUY or RFQ button to purchase SCS350X from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part SCS350X?
You can download the SCS350X datasheet or visit the Panduit website for support.
Who is the manufacturer of SCS350X?
Panduit
