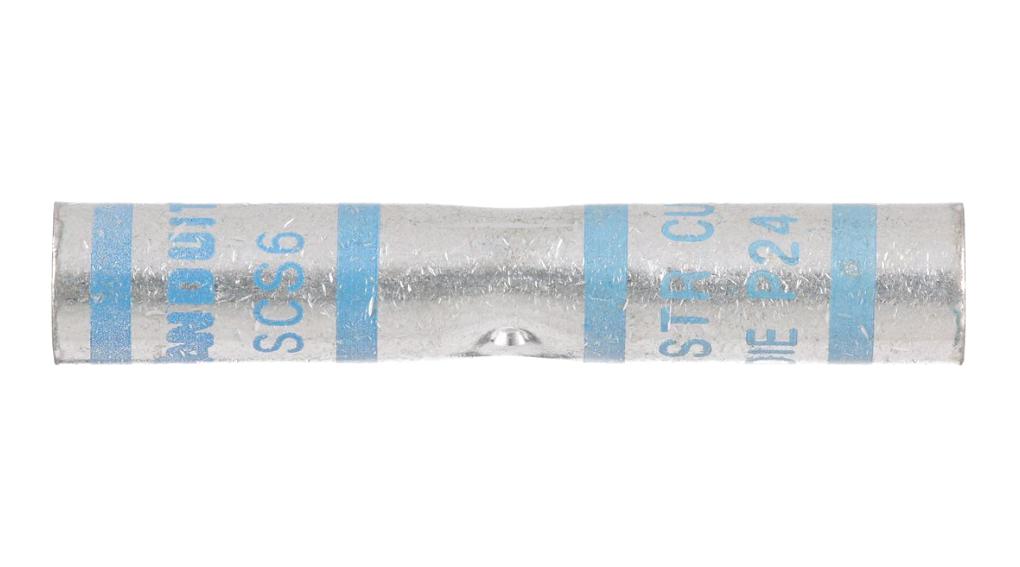

Panduit SCS6L Copper Lug
The Pan-Lug code conductor features a standard barrel designed for reliable butt splicing, with color-coded barrels marked with Panduit and competitor die index numbers. It includes internal wire stops to prevent conductor over-insertion and is tin-plated for corrosion resistance. Certified by Telcordia to meet NEBS Level 3, it is UL listed and CSA certified for voltages up to 600V, with an operating temperature rating of 90°C. Suitable for stranded copper conductors, this lug ensures secure, durable electrical connections in industrial and commercial wiring applications.
Panduit SCS6L Copper Lug Specifications:
- Material: Tin-plated copper
- Voltage Rating: Up to 600V
- Temperature Rating: 90°C
- Color-coded barrels for easy identification
- Includes internal wire stops to prevent over-insertion
- Certification: UL Listed, CSA Certified, Telcordia NEBS Level 3
- Part Number: SCS6L
- Application: Stranded copper conductors, butt splicing
- Design: Standard barrel, color-coded for various wire sizes
- Markings: Panduit logo and competitor die index number
- Length: 1.78 inches
- Certifications ensure reliable performance in industrial wiring
Buy the Buy Panduit SCS6L Part Number SCS6L Online
Purchase the Panduit copper lug SCS6L online for dependable butt splicing of stranded copper conductors. This UL listed and CSA certified terminal features a standard barrel, color-coded markings for quick identification, and corrosion-resistant tin plating. Designed for voltage up to 600V and temperature ratings of 90°C, it includes internal wire stops to ensure proper insertion. Ideal for industrial wiring, this lug guarantees durable and reliable electrical connections, simplifying your installation process and enhancing system safety and performance.
Get Panduit SCS6L today—built for secure and corrosion-resistant electrical connections in industrial applications.
Frequently Asked Questions
Where can I buy Panduit SCS6L?
You can click on the BUY or RFQ button to purchase SCS6L from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part SCS6L?
You can download the SCS6L datasheet or visit the Panduit website for support.
Who is the manufacturer of SCS6L?
Panduit
