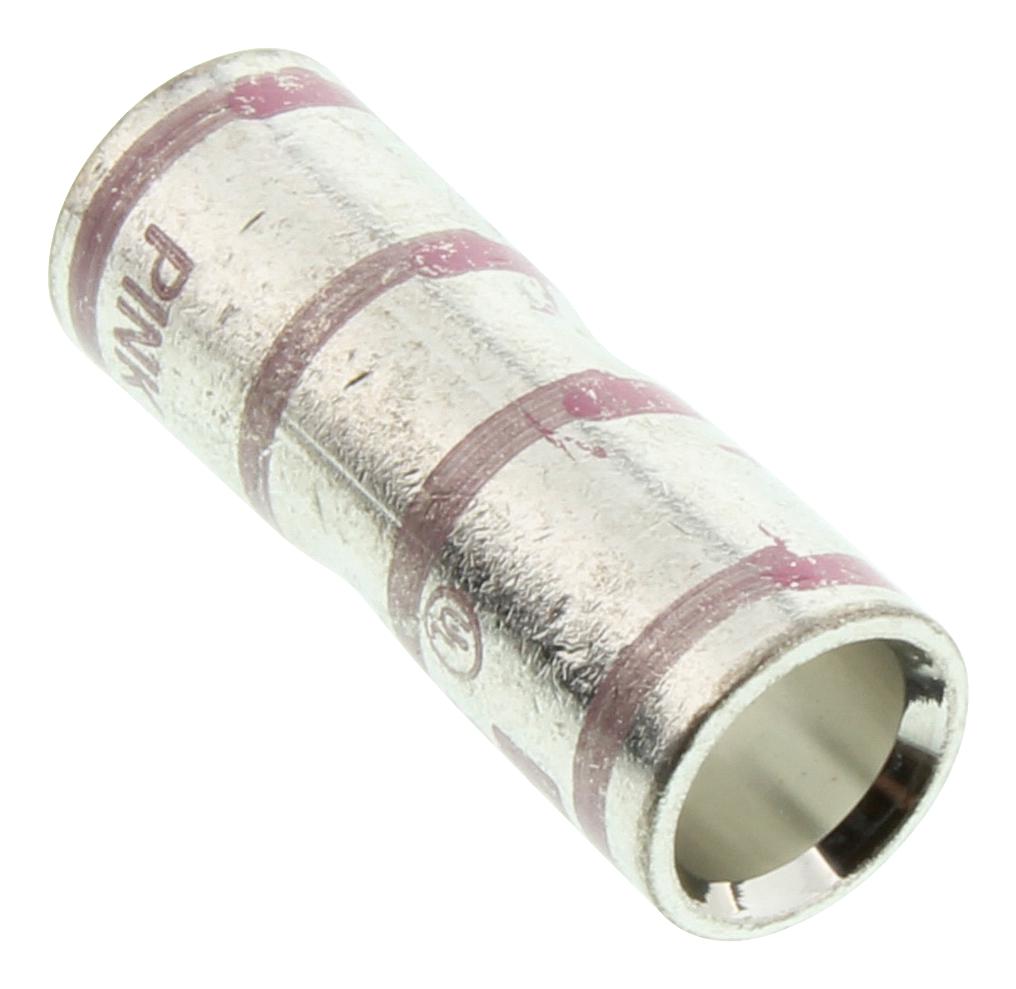

Panduit SCSS10X Short Barrel Butt Splice Connector
The PANDUIT SCSS1/0-X short barrel butt splice connector is engineered for applications where space is limited. Its short barrel design, combined with color-coded barrels marked with die index numbers, ensures accurate crimping using Panduit or specified competitor tools. Internal wire stops prevent conductor over-insertion, enhancing reliability. This connector is UL Listed and CSA Certified to 35 KV and temperature rated to 90°C, demonstrating its robust performance. It meets NEBS Level 3 standards and is tin-plated to inhibit corrosion, making it suitable for a wide range of industrial and commercial applications.
Panduit SCSS10X Short Barrel Butt Splice Connector Specifications:
- Copper Conductor Size: #1 AWG
- Barrel O.D. (In.): 0.52
- L (In.): 1.44
- Panduit Color Code: Pink
- Panduit Die Index No.: P42
- Burndy Die Index No.: 12
- T&B Die Index No.: 42
- Wire Strip Length (In.): 11/16
- Std. Pkg. Qty.: 10
Buy the SCSS1/0-X PANDUIT Short Barrel Butt Splice Connector | myMectronic
Purchase the PANDUIT SCSS1/0-X connector securely and reliably online.
Buy Now
