Panduit TNC37X37LG2 Low-Smoke Halogen-Free Wiring Duct

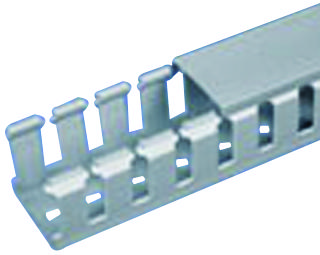

Panduct Type TNC wall wiring duct is a low-smoke, halogen-free, slotted duct made from fire-resistant materials suitable for rail transit, offshore, and industrial applications. It complies with UL94 V-0, NFPA 130, DIN 5510-2, and other standards, ensuring safety in harsh environments. The duct features a wide-finger design for greater rigidity, a flush cover for better aesthetics, and easy breakouts with score lines. Available in various sizes, it supports electrical and communication cabling with fire retardant, smoke suppression, and environment-safe properties, ideal for control panels and cable management systems.
Panduit TNC37X37LG2 Low-Smoke Halogen-Free Wiring Duct Specifications:
- Material: PPE + HIPS (Polyphenylene Ether + High Impact Polystyrene)
- Flammability: UL94 V-0, DIN 5510-2 S-4, SR-2, ST-2 ratings
- Temperature Range: -70°C to 105°C (-94°F to 221°F)
- Dimensions (mm): 25x37, 25x75, 37x37, 37x75, 50x50, 75x75, 100x50, 100x75
- Standard Compliance: NFPA 130, DIN 5510-2, BSS 7239, AFNOR NF F 16 101/102, EN UNI 11925-2
- Properties: Smoke density 16 (Ds @ 1.5 min), 66 (Ds @ 4 min), Flame spread index 15, Flammability class v-0
- Physical Features: Wide finger design, flush cover, easy breakouts with score lines, divider wall mounting discs
- Application: Suitable for transportation, offshore platforms, control panels, and electrical systems requiring fire safety
Buy the Panduit TNC37X37LG2 – Reliable Fire-Resistant Wiring Duct for Industrial Applications
Purchase the Panduit TNC37X37LG2 low-smoke, halogen-free wiring duct online today. Engineered for safety and durability, it ensures compliance with UL94 V-0, NFPA 130, and other standards. Its wide-finger design provides greater rigidity and versatility for cable management in demanding environments such as rail transit and offshore applications. The flush cover and easy breakouts save installation time while maintaining a clean aesthetic. Perfect for control panels, communication systems, and electrical routing, this duct offers superior fire, smoke, and toxicity resistance for enhanced safety and reliable performance.
Order your Panduit Series TNC37X37LG2 fire-resistant wiring duct today and enhance your electrical safety with quality, regulatory compliance, and durability.
Frequently Asked Questions
Where can I buy Panduit TNC37X37LG2?
You can click on the BUY or RFQ button to purchase TNC37X37LG2 from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part TNC37X37LG2?
You can download the TNC37X37LG2 datasheet or visit the Panduit website for support.
Who is the manufacturer of TNC37X37LG2?
Panduit
