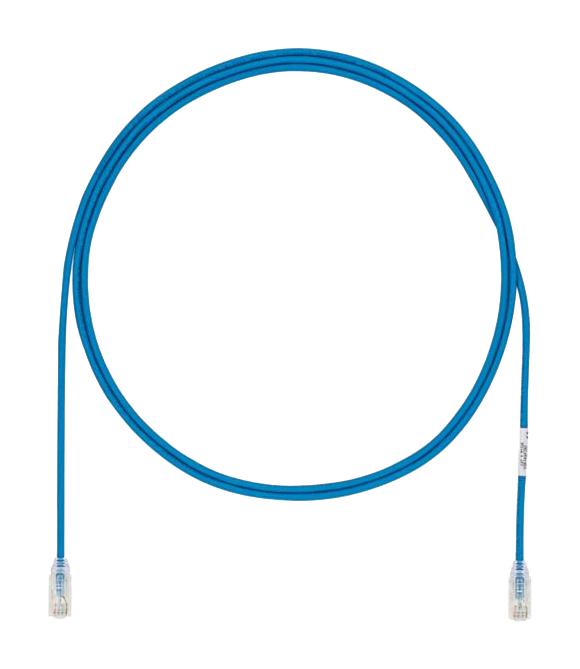

Panduit UTP28X10 Category 6A Patch Cords
Category 6A performance patch cords with 28 AWG unshielded twisted pair cables constructed of solid copper. Designed for high-speed data applications supporting 10GBASE-T Ethernet, data center consolidation, backbone aggregation, and parallel processing. Features smaller diameter, enhanced flexibility, tight bend radius for improved cable routing, and multiple lengths and colors for system flexibility. Meets ANSI/TIA-568.2-D Category 6A standards, ISO 11801 Class E, and IEC 60603-7 compliance. Equipped with gold-plated contacts rated for 2500 mating cycles and optional lock-in devices for security.
Panduit UTP28X10 Category 6A Patch Cords Specifications:
- Cable Type: Unshielded Twisted Pair (UTP)
- Conductor: 28 AWG solid copper
- Diameter: 0.185 inches (4.7 mm)
- Performance: Supports channels up to 96 meters, including 90-meter permanent links, with high-frequency performance up to 500 MHz
- Standards: Meets ANSI/TIA-568.2-D Category 6A, ISO 11801 Class E, IEC 60603-7
- PoE Support: IEEE 802.3af/at and 802.3bt (type 3 and 4) applications, with bundled cable sizes
- Temperature Range: -10°C to 75°C (14°F to 167°F)
- Flammability: CMR/LSZH dual-rated
- Cable Lengths: 0.5m to 20m (including 1 to 50 feet, 55 to 130 feet options)
- Connector: Gold-plated phosphor bronze contacts, rated for 2500 cycles
- Color Options: Multiple colors, including standard and custom suffixes for color coding
- Compliance: UL, CSA, RoHS
Buy the Panduit Series TX6A Category 6A Performance: UTP Patch Cords UTP28X10
Enhance your network performance with Panduit Category 6A Patch Cords. Crafted from 28 AWG solid copper with gold-plated contacts, these cords support high-speed Ethernet, PoE applications, and data center deployments. Available in various lengths and vibrant colors, they feature a smaller diameter for improved cable management and airflow. With rigorous testing for wire map, NEXT, and return loss, plus optional lock-in devices for added security, these patch cords ensure reliable connectivity and easy installation in demanding network environments.
Buy Panduit UTP28X10 now and experience unmatched reliability and high-speed performance in your data network.
