Panduit UTP28X10BL High-Speed Ethernet Patch Cord

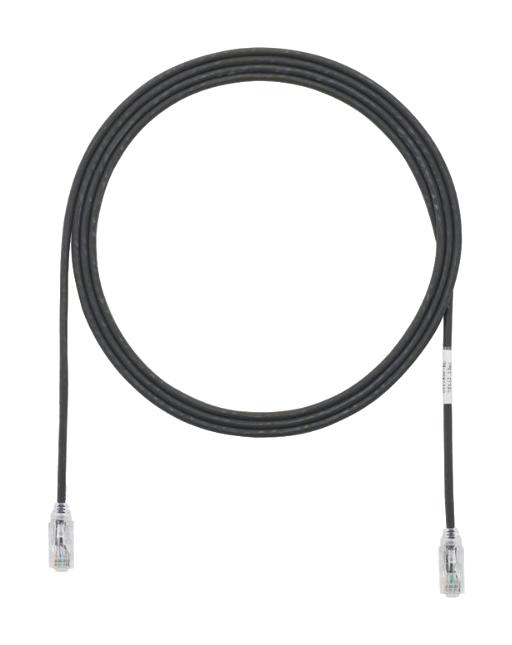

Panduit TX6A-28™ Category 6A Performance patch cords are 28 AWG, unshielded twisted pair cables designed for high-speed Ethernet applications. Constructed from solid copper with a small diameter for enhanced routing in high-density environments, these cords support frequencies up to 500 MHz and exceed ANSI/TIA-568.2-D standards. Features include gold-plated contacts rated for 2,500 mating cycles, an integral pair manager, tangle-free latch, and optional lock-in devices. Available in various lengths and colors, they are suited for data centers, backbone networks, and high-speed computing environments, ensuring reliable performance and system flexibility.
Panduit UTP28X10BL High-Speed Ethernet Patch Cord Specifications:
- Cable Type: UTP Category 6A/Class E
- Conductor: 28 AWG solid copper
- Diameter: 0.185 inches (4.7mm)
- Frequency Range: Up to 500 MHz
- Attenuation De-rating Value: 1.9
- Maximum Channel Length: 96 meters (including 90 meters permanent link + 10 meters patch cords)
- Operating Temperature: -10°C to +75°C (14°F to 167°F)
- Storage Temperature: -40°C to +70°C (-40°F to 158°F)
- Connectors: Gold plated phosphor bronze contacts, rated for 2,500 mating cycles
- Flammability: CMW/LSZH dual-rated
- Certifications: UL 1863, CAN/CSA-C22.2, ANSI/TIA-568.2-D, IEC 60603-7, RoHS
- Features: Slim diameter for high-density routing, center de-embedded plug, integral pair manager, tangle-free latch, optional plug lock-in devices
- Lengths: 1 to 50 feet (every 1 ft), 0.5 to 20 meters (every 0.5m), multiple colors available
- PoE Support: IEEE 802.3af/at/bt type 3 and 4
- Temperature Range: -40°F to 158°F (-40°C to 70°C)
Buy the Panduit Series TX6A-28 Category 6A Performance Patch Cord: UTP28X10BL
Enhance your network setup with Panduit TX6A-28™ Category 6A Performance patch cords. These 28 AWG unshielded twisted pair cables offer exceptional performance for 10GBASE-T Ethernet, data centers, and high-speed computing environments. Available in various lengths and colors, these cords feature gold-plated contacts rated for 2,500 cycles, an integral pair manager, and a tangle-free latch for easy handling. Ensure reliable, high-quality connections with cables that support PoE applications and exceed industry standards. Shop online today for trusted performance and system flexibility.
Order your Panduit Series TX6A-28 Category 6A Performance Patch Cord today and ensure reliable, high-speed networking with durable, high-performance cables.
