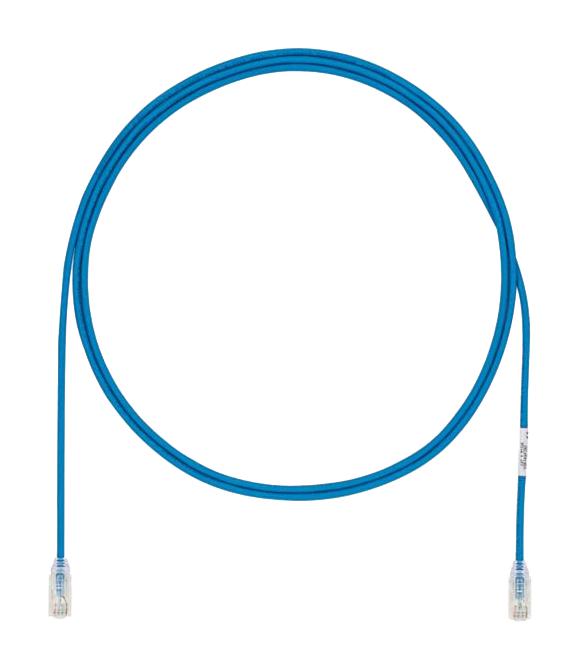

Panduit UTP28X10BU Category 6A Patch Cord
Category 6A performance patch cords with 28 AWG unshielded twisted pair copper conductors, designed for high-speed Ethernet and data networking. These flexible, small-diameter cords support 10GBASE-T, PoE applications, and high-density installations. Constructed with robust, gold-plated contacts, they meet industry standards including ANSI/TIA-568.2-D and ISO 11801 Class E for frequencies up to 500 MHz. Available in various colors and lengths, they feature a tangle-free latch, identification labels, and optional plug lock-in devices to maximize network performance, reliability, and ease of installation.
Panduit UTP28X10BU Category 6A Patch Cord Specifications:
- Category 6A/Class E, UTP, unshielded twisted pair copper conductors
- 28 AWG, solid copper, dual-rated CM/LSZH
- Cable diameter: 0.185 inches (4.7mm)
- Supports 10GBASE-T Ethernet, PoE IEEE 802.3af/at/bt
- Rated for temperatures from -40°F to 158°F (-40°C to 70°C)
- Gold-plated contacts with 50 microinches of gold, rated for 2500 mating cycles
- Lengths available: 1 to 50 feet, 0.5 to 40 meters, with specific increments
- Compliance: ANSI/TIA-568.2-D, ISO 11801 Class E, IEC 60603-7, UL 1863, CAN/CSA-C22.2
- RoHS compliant, UL94V-0 rated plug housing, Tangle-free latch, Identification label
- Supports high-density routing with smaller, flexible design, enhanced airflow and cooling
Buy the Buy Panduit Category 6A Patch Cords Part Number UTP28X10BU Online
Enhance your network with Panduit Category 6A Patch Cords designed for high-speed data transfer and PoE applications. These 28 AWG unshielded twisted pair cords are available in various lengths and colors, supporting 10GBASE-T Ethernet, with reliable gold-plated contacts ensuring durability and performance. Their compact, flexible design with a tangle-free latch simplifies installation in high-density environments, while compliance with industry standards guarantees quality and interoperability. Whether for data centers or office wiring, these patch cords guarantee fast, secure, and efficient connectivity.
Order your Panduit Series UTP28X10BU high-performance Ethernet patch cord today and ensure a reliable, fast, and efficient network connection for your data center or office needs.
Frequently Asked Questions
Where can I buy Panduit UTP28X10BU?
You can click on the BUY or RFQ button to purchase UTP28X10BU from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X10BU?
You can download the UTP28X10BU datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X10BU?
Panduit
