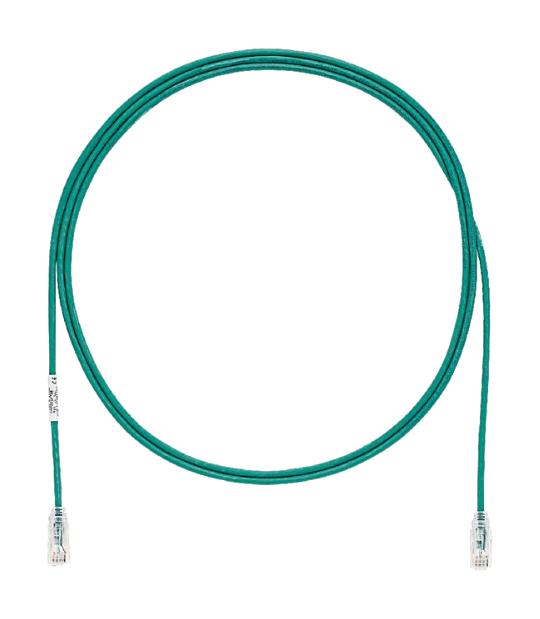

Panduit UTP28X10GR Category 6A Patch Cord
Category 6A performance patch cords with 28 AWG unshielded twisted pair cable feature a small diameter for enhanced flexibility and high-density applications. Crafted from solid copper with CM/LSZH ratings, these cords support up to 10GBASE-T Ethernet, data center consolidation, and high-speed computing. They meet ANSI/TIA-568.2-D, ISO 11801 Class E standards, supporting frequencies up to 500 MHz. The cords come in various lengths, colors, and are equipped with gold-plated contacts rated for 2500 mating cycles, ensuring reliability and performance for demanding network infrastructures.
Panduit UTP28X10GR Category 6A Patch Cord Specifications:
- Cable Type: Category 6A UTP, solid copper, CM/LSZH rated
- Wire Gauge: 28 AWG
- Cable Diameter: 0.185 in. (4.7mm)
- Connector: Gold-plated contacts, UL94V-0 rated Polycarbonate housing
- Performance: Supports frequencies up to 500 MHz, exceeds ANSI/TIA-568.2-D and ISO 11801 Class E standards
- Voltage Rating: 250V, Mating Cycles: 2500
- Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Lengths Available: 1-50 ft, 0.5-20 m, customizable in specified increments
- Colors: Off White, Black, Blue, Red, Yellow, Green, Orange, Gray, Violet
- Compliance: cULus, UL 1863, CAN/CSA-C22.2, RoHS, IEC 60603-7, IEEE 802.3af/at/bt
- Features: Tangle-free latch, integral pair management, optional plug lock-in, identification label, robust construction
Buy the Panduit UTP28X10GR – Reliable Ethernet Patch Cords for Industrial Applications
Upgrade your network with Panduit Category 6A Patch Cords, UTP28X10GR with small diameter design for improved cable management and airflow. These cords support 10GBASE-T Ethernet, data center consolidation, and virtualization, making them ideal for high-speed, demanding environments. Constructed with solid copper, these cords meet industry standards for performance and safety, including ANSI/TIA-568.2-D and ISO 11801 Class E. Available in various lengths and colors, they feature gold-plated contacts rated for 2500 mating cycles, ensuring durability and consistent connectivity for critical networking applications.
Buy Panduit UTP28X10GR now and experience unmatched reliability and performance in high-speed network setups.
Frequently Asked Questions
Where can I buy Panduit UTP28X10GR?
You can click on the BUY or RFQ button to purchase UTP28X10GR from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X10GR?
You can download the UTP28X10GR datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X10GR?
Panduit
