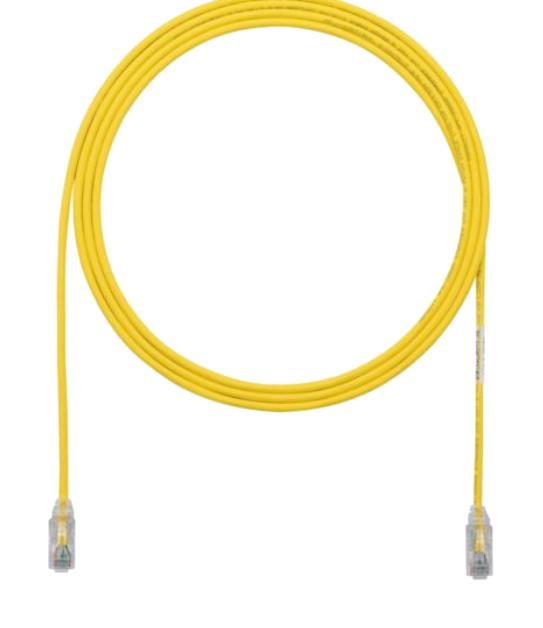

Panduit UTP28X10YL High Speed Ethernet Patch Cord
Category 6A performance patch cords constructed of 28 AWG, unshielded, twisted pair, solid copper with high-quality RJ45 modular plugs. Designed for high-speed Ethernet applications, these flexible, small-diameter cords support 10GBASE-T, data center consolidation, backbone aggregation, and high-speed computing. They meet ANSI/TIA-568.2-D Category 6A standards, IEC 60603-7, and PoE requirements, with color and length options. Their robust construction ensures reliable electrical performance, easy routing, and durability for demanding networking environments, supporting up to 500 MHz frequencies with 96 meter channel support.
Panduit UTP28X10YL High Speed Ethernet Patch Cord Specifications:
- Category: 6A/Class EA
- Conductor: 28 AWG solid copper
- Insulation: UTP twisted pair
- Shielding: Unshielded (UTP)
- Cable Diameter: 0.185 in. (4.7mm)
- Lengths: 0.5m to 20m (every 0.5m, 1m to 50ft, 5ft increments)
- Color Options: Off White, Black, Blue, Red, Yellow, Green, Orange, Gray, Violet
- Operating Temperature: -40°F to 158°F (-40°C to 70°C)
- Flammability: CMW/LSZH dual-rated
- Certifications: UL, cULus, IEC 60603-7, Meets ANSI/TIA-568.2-D, ISO 11801 Class E
- PoE Support: 802.3af, 802.3at, 802.3bt
- Performance: Exceeds all standards for frequencies up to 500 MHz
- Inclusion: Patch cords include modular plugs with gold plated contacts, license labels, and optional lock-in devices
- Compliance: RoHS, UL Listed, CSA Certified
- Packaging: 6-pack, 48-pack available
- Temperature range: -10°C to +75°C
Buy the Buy Panduit TX6A-28™ Category 6A Patch Cords Part Number UTP28X10YL Online
Purchase the Panduit TX6A-28™ Category 6A Patch Cord online to ensure your networking setup benefits from superior performance, durability, and flexibility. These high-quality patch cords support 10GBASE-T Ethernet, PoE applications, and data center requirements. With various lengths and colors available, they are ideal for high-density networks, server racks, and backbone connections. Their robust construction and compliance with industry standards guarantee reliable, high-speed data transmission with minimal interference. Enhance your network's efficiency today by ordering these versatile patch cords online.
Order your Panduit TX6A-28™ Category 6A Patch Cord today and enhance your network with reliable, high-speed Ethernet connections.
