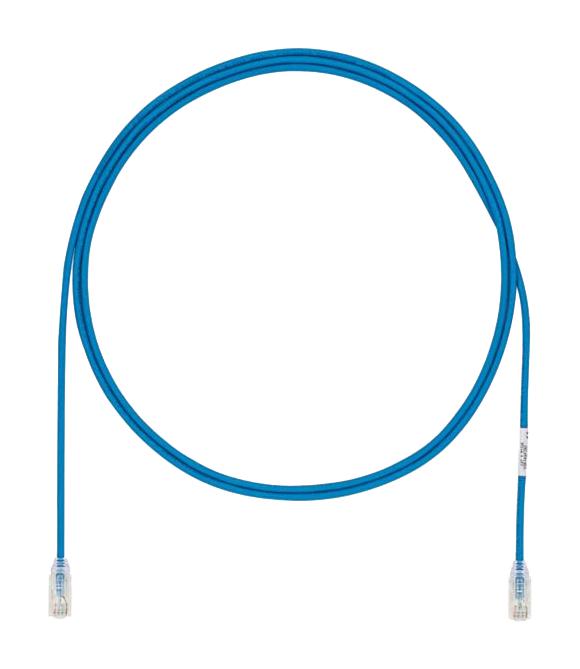

Panduit UTP28X15 Category 6A Patch Cord
The UTP28X15 patch cord is a Category 6A performance, 28 AWG unshielded twisted pair (UTP) cable designed for high-speed Ethernet applications. It features a smaller diameter for improved cable management, enhanced airflow, and lower operating costs. Compliant with ANSI/TIA-568.2-D and ISO 11801 Class E standards, it supports 10GBASE-T Ethernet, data center consolidation, and virtualization. The cable is constructed with solid copper conductors, gold-plated contacts rated for 2500 mating cycles, and available in various lengths and colors for system flexibility. Its robust design includes a tangle-free latch and optional lock-in devices to prevent accidental disconnection.
Panduit UTP28X15 Category 6A Patch Cord Specifications:
- Cable Type: Category 6A/Class EA, UTP
- Conductor Gauge: 28 AWG
- Construction: Unshielded twisted pair, solid copper
- Insulation Material: CM/LSZH rated
- Cable Diameter: 0.185 inches (4.7 mm)
- Lengths Available: 0.5 to 40 meters, 1 to 50 feet, with specific lengths for each standard
- Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Flammability Rating: CMW/LSZH dual-rated
- Compliance: ANSI/TIA-568.2-D, ISO 11801 Class E, IEC 60603-7, UL 1863, CAN/CSA-C22.2
- PoE Support: IEEE 802.3af/at, 802.3bt type 3 and 4
- Gold Plated Contacts: 50 microinches, rated for 2500 mating cycles
- Connector Housing: UL94V-0 rated clear polycarbonate
- Temperature Operating: -10°C to 75°C
- Performance: Supports up to 96 meter channels, with compliance at component and channel levels
- Color Options: Off White, Blue, Red, Yellow, Green, Orange, Gray, Violet
- Additional Features: Tangle-free latch, identification label, optional plug lock-in devices
Buy the Panduit UTP28X15 – Reliable Category 6A Patch Cords for Industrial Applications
Enhance your network with Panduit UTP28X15 Category 6A patch cords. These high-performance, 28 AWG unshielded twisted pair cables are designed for rapid deployment in data centers and high-speed Ethernet networks. With a smaller diameter for easy installation, they support 10GBASE-T, virtualization, and backbone aggregation, ensuring reliable performance. Available in multiple lengths and colors, each cord features gold-plated contacts rated for 2500 mating cycles, coupled with a tangle-free latch and optional lock-in devices, providing flexible and secure connectivity for all your networking requirements.
Buy Panduit UTP28X15 now and experience unmatched reliability and high-speed performance for your networking needs.
Frequently Asked Questions
Where can I buy Panduit UTP28X15?
You can click on the BUY or RFQ button to purchase UTP28X15 from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X15?
You can download the UTP28X15 datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X15?
Panduit
