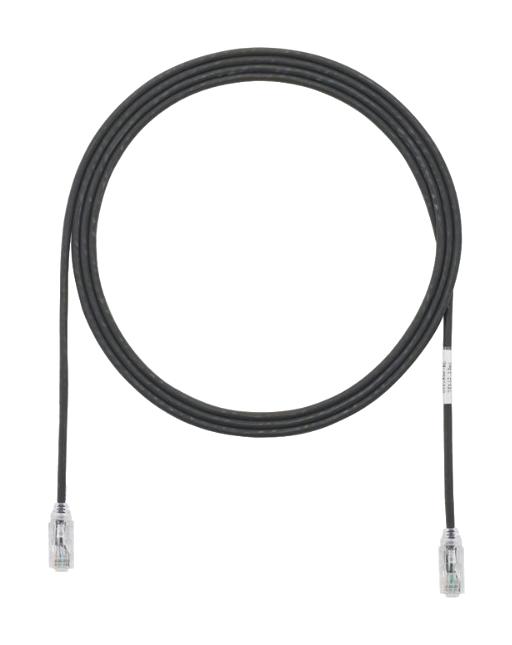

Panduit UTP28X15BL Category 6A Patch Cord
Category 6A performance patch cords from Panduit feature 28 AWG unshielded twisted pair copper conductors, designed for high-speed Ethernet applications including 10GBASE-T, data center I/O consolidation, and backbone aggregation. These cords support frequencies up to 500 MHz, meet ANSI/TIA-568.2-D and ISO 11801 Class E standards, and are UL/CSA/IEC compliant with RoHS and LSZH ratings. They include features like a robust gold-plated contact, a tangle-free latch, integral pair management, and customizable lengths and colors for flexible system integration. Ideal for high-density, high-performance network setups, these patch cords ensure reliable, efficient networking performance over distances up to 96 meters.
Panduit UTP28X15BL Category 6A Patch Cord Specifications:
- Category 6A/Class E, UTP, small diameter patch cords constructed of 28 AWG, solid copper (dual-rated CM/LSZH)
- Cable diameter: 0.185 in. (4.7mm)
- Supports frequencies up to 500 MHz
- Supports 96 meter channels including 90 meter permanent links
- Lengths: 1-50 feet, 0.5-40 meters with increments specified
- Operating temperature: -40°F to 158°F (-40°C to 70°C)
- Flammability rating: CM/LSZH dual-rated; UL94V-0
- Contacts: Gold-plated phosphor bronze with 50 microinches gold, rated for 2500 mate cycles
- Cable color options available; customizable with suffixes for color coding
- Meets ANSI/TIA-568.2-D Category 6A and ISO 11801 Class E standards
- Compliant with IEC 60603-7 and IEEE 802.3af/at/bt PoE applications
- Backed by robust construction, integral pair management, and patented tangle-free latch for durability and ease of use
- RoHS compliant, UL/CSA listed, suitable for high-density installation environments
Buy the Buy Panduit UTP28X15BL Category 6A Patch Cord Part Number UTP28X15BL Online
Enhance your network performance with Panduit Category 6A Patch Cords. Designed with 28 AWG unshielded twisted pair copper conductors, these cords support high-speed 10GBASE-T Ethernet, support channels up to 96 meters, and meet all industry standards for electrical and safety compliance. Available in multiple lengths and colors, they feature gold-plated contacts, integral pair management, a tangle-free latch, and options for plug lock-in devices to prevent unintended removal. Reliable and durable, these patch cords are perfect for data centers, high-density networks, and enterprise solutions, ensuring optimal connectivity and minimal signal loss for demanding network environments.
Order your Panduit SeriesU TP28X15BL 96 Meter 28 AWG Patch Cord today and give your network the dependable quality it deserves, ensuring high-speed, reliable data transfer.
