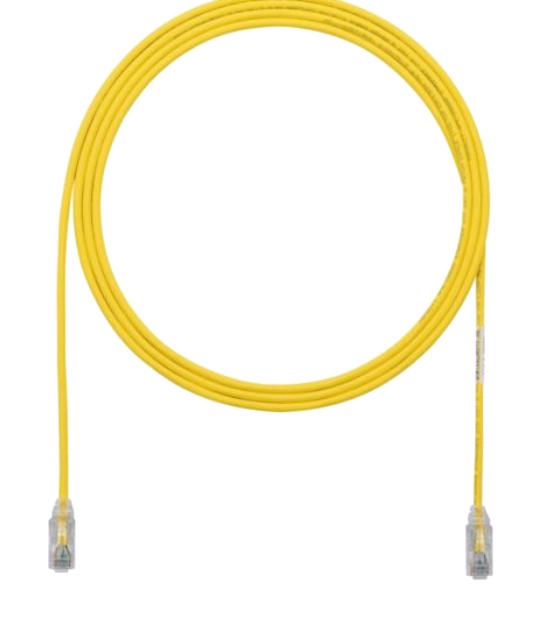

Panduit UTP28X15YL Category 6A Patch Cord
Panduit TX6A-28™ Category 6A Performance 28 AWG UTP Patch Cords are flexible, small-diameter cables optimized for high-density data center applications. Constructed of unshielded twisted pairs with solid copper conductors, these patch cords support 10GBASE-T Ethernet, high-speed computing, and backbone aggregation. They meet ANSI/TIA-568.2-D Category 6A and ISO 11801 Class E standards, supporting frequencies up to 500 MHz. Available in various lengths and colors, they feature gold-plated contacts, tangle-free latches, and optional plug lock-ins for enhanced performance, reliability, and system flexibility.
Panduit UTP28X15YL Category 6A Patch Cord Specifications:
- Constructed of 28 AWG, unshielded twisted pair, solid copper conductors (dual-rated CM/LSZH)
- Cable diameter: 0.185 in. (4.7mm)
- Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class E standards
- Supports frequencies up to 500 MHz
- Rated for 2500 mating cycles with gold-plated contacts
- Temperature range: -10°C to 75°C (14°F to 167°F)
- RoHS, UL 1863, UL94V-0, CULus Listed, CAN/CSA-C22.2 compliant
- Lengths range from 1 to 50 feet, meters from 0.5 to 40
- Colors available include Off White, Blue, Red, Yellow, Green, Orange, Gray, Violet
- Plug housing: UL94V-0 rated clear Polycarbonate
- Designed with integral pair manager and patented tangle-free latch
- Supports PoE applications (IEEE 802.3af/at/bt)
- Suitable for high-density cable routing and cooling efficiency
Buy the Buy Panduit TX6A-28 Part Number UTP28X15YL Online
Purchase the Panduit TX6A-28 Category 6A Patch Cord online now to enjoy reliable high-speed Ethernet connectivity for data centers and networking. Featuring a small diameter and flexible design, these cords support 10GBASE-T Ethernet, high-density routing, and PoE applications. They are constructed with solid copper conductors, gold-plated contacts, and UL94V-0 rated Polycarbonate housing. Available in various lengths and colors, these cords are tested for optimal performance, environmental resilience, and interoperability, making them ideal for professional network installations and expansion projects.
Order your Panduit Series UTP28X15YL high-performance patch cord today and ensure reliable high-speed data connection with excellent flexibility and durability.
Frequently Asked Questions
Where can I buy Panduit UTP28X15YL?
You can click on the BUY or RFQ button to purchase UTP28X15YL from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X15YL?
You can download the UTP28X15YL datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X15YL?
Panduit
