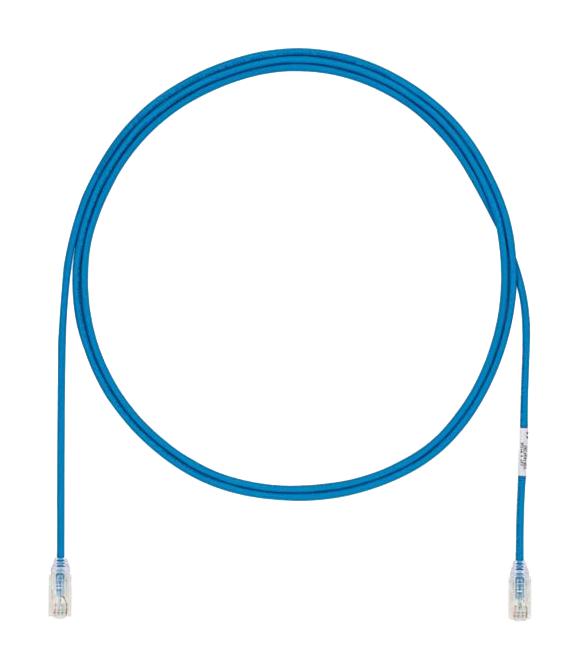

Panduit UTP28X1BU Category 6A Patch Cord
Category 6A/Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E, electrical performance requirements for frequencies up to 500 MHz. These high-performance, 28 AWG unshielded twisted pair patch cords feature a compact diameter for improved cable management and enhanced airflow, supporting 10GBASE-T Ethernet, data center applications, and high-speed computing. Constructed with solid copper conductors and gold-plated contacts rated for 2500 mating cycles, they ensure reliable and efficient network performance. Available in various lengths and vibrant colors, these cords facilitate easy identification, system flexibility, and robust connectivity in high-density network environments.
Panduit UTP28X1BU Category 6A Patch Cord Specifications:
- Category: 6A/Class E, compliant with ANSI/TIA-568.2-D and ISO 11801
- Conductor: 28 AWG solid copper
- Cable Diameter: 0.185 in. (4.7mm)
- Frequency Range: up to 500 MHz
- Connector: RJ45 modular plug, gold plated, rated for 2500 mating cycles
- Flammability: CMW/LSZH dual-rated, UL94V-0
- Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Lengths: 1 ft to 50 ft (every 1 ft), 0.5 m to 40 m (every 0.5 m)
- Color Options: White, Blue, Red, Yellow, Green, Orange, Gray, Violet
- PoE Support: IEEE 802.3af/at/bt
Buy the Panduit Series TX6A Category 6A Patch Cords: UTP28X1BU
Buy your Panduit Series TX6A Category 6A Patch Cord online now to ensure high-quality, reliable network connections for data centers, enterprise, and high-speed Ethernet applications. These cords support 10GBASE-T Ethernet, PoE, and high-density setups with a compact design, gold-plated contacts, and a variety of lengths and colors to meet your specific needs. They are tested for wire map, NEXT, return loss, and exceed industry standards for performance and durability. Experience easy installation and dependable connectivity with these top-tier patch cords, designed for demanding network environments.
Order your Panduit Series TX6A Category 6A Patch Cord today and enhance your high-speed network infrastructure with reliable, durable connectivity.
Frequently Asked Questions
Where can I buy Panduit UTP28X1BU?
You can click on the BUY or RFQ button to purchase UTP28X1BU from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X1BU?
You can download the UTP28X1BU datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X1BU?
Panduit
