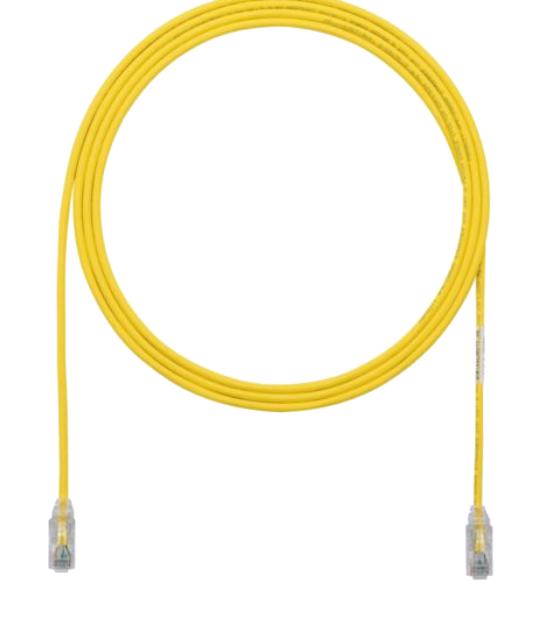

Panduit UTP28X1YL Ethernet Patch Cord
Category 6A patch cords with 28 AWG unshielded twisted pair copper conductors designed for high-performance networking. These small diameter, flexible cables support 10GBASE-T Ethernet, data center consolidation, server virtualization, backbone aggregation, and high-speed computing. Constructed with dual-rated CM/LSZH materials, they meet ANSI/TIA-568.2-D, IEC 60603-7, and IEC compliance standards. Featuring a tangle-free latch, gold-plated contacts, and optional lock-in devices, they ensure reliable connections, easy management, and enhanced system flexibility across various lengths and vibrant colors for optimal network performance and management.
Panduit UTP28X1YL Ethernet Patch Cord Specifications:
- Category 6A/Class E, UTP, small diameter patch cords constructed of 28 AWG, unshielded, twisted pair, solid copper (dual-rated CM/LSZH).
- Cable diameter: 0.185 in. (4.7mm).
- Lengths: 1 to 50 feet (every 1 ft), 55 to 130 feet (every 5 ft), 0.5 to 40 meters (every 0.5m to 5m).
- Operating temperature: -40°F to 158°F (-40°C to 70°C).
- Plug housing: UL94V-0 rated clear Polycarbonate. Contacts: Gold plated phosphor bronze with 50 microinches of gold.
- Flammability rating: CMW/LSZH dual-rated.
- Meets ANSI/TIA-568.2-D, IEC 60603-7, IEEE 802.3af/at, 802.3bt standards, and UL 1863, CSA certifications.
- Supports 96-meter channels including 90-meter permanent links and 10 meters patch cords.
- Tight bend radius with smaller cable diameter enabling improved cable routing and airflow, reducing operating costs.
- Features an integral pair manager, patented tangle-free latch, and identification label for enhanced performance and management.
Buy the Panduit UTP28X1YL – Reliable Ethernet Patch Cords for High-Speed Networks
Purchase Panduit UTP28X1YL Ethernet patch cords online today to ensure superior performance and reliable connectivity in your networking infrastructure. These high-quality, flexible cables support 10GBASE-T Ethernet, data center consolidation, and server virtualization, providing excellent performance with a durable design. With a wide range of lengths and vibrant colors, they allow easy system configuration and management. Designed with gold-plated contacts and dual-rated CM/LSZH materials, these patch cords are built for safety, compliance, and long-term dependability in demanding industrial and data networking environments. Buy now to experience unmatched performance and installation simplicity.
Buy Panduit UTP28X1YL patch cords now and enhance your network’s reliability with flexible, high-performance cables designed for data centers and industrial environments.
Frequently Asked Questions
Where can I buy Panduit UTP28X1YL?
You can click on the BUY or RFQ button to purchase UTP28X1YL from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X1YL?
You can download the UTP28X1YL datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X1YL?
Panduit
