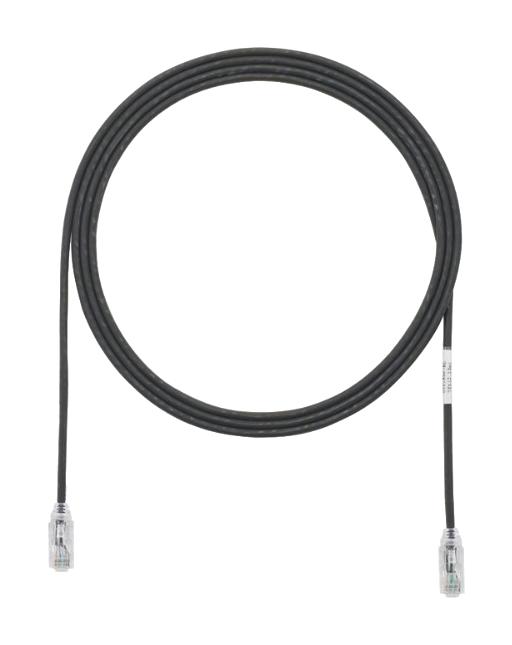

Panduit UTP28X3BL Category 6A Patch Cord
Panduit TX6A-28™ Category 6A Performance Patch Cords are 28 AWG unshielded twisted pair cables designed for high-speed data transmission. Constructed with solid copper conductors and available in multiple lengths and colors, these cords support fast Ethernet, data center applications, and high-speed networking with excellent performance up to 500 MHz. They feature a smaller, flexible diameter for better cable management, a robust gold-plated contact design rated for 2500 mating cycles, and optional plug lock-in devices, ensuring reliable, efficient connectivity in demanding network environments.
Panduit UTP28X3BL Category 6A Patch Cord Specifications:
- Category 6A support up to 500 MHz frequency
- Construction: 28 AWG solid copper twisted pairs
- Cable diameter: 0.185 inches (4.7 mm)
- Lengths: 0.5 to 40 meters, 1 to 50 feet
- Colors: Off White, Blue, Red, Yellow, Green, Orange, Gray, Violet (with suffixes for custom colors)
- Connectors: Gold-plated contacts rated for 2500 mating cycles
- Temperature Range: -10°C to 75°C (14°F to 167°F)
- Flammability: UL94V-0 rated, CMLSZH rated for low smoke and flame resistance
- Conforms to ANSI/TIA-568.2-D and ISO 11801 Class E standards
- Supports IEEE 802.3af/at/bt PoE applications, with bundle support up to 24-48 cables
- Certifications: UL Listed, cULus, RoHS compliant
- Flexible, small diameter design enables tight bend radius and improved airflow
- Additional features: integral pair manager, tangle-free latch, identification label, optional plug lock-in devices.
Buy the Buy Panduit UTP28X3BL Part Number UTP28X3BL Online
Enhance your network with Panduit UTP28X3BL Category 6A Patch Cords ideal for high-speed data transmission, data centers, and enterprise LANs. These 28 AWG unshielded twisted pair cables offer exceptional electrical performance, supporting up to 500 MHz frequency with solid copper conductors for maximum reliability. They feature a reduced diameter for easy management, tight bend radius, and excellent airflow. Available in multiple lengths and colors to meet your system needs, each cord guarantees durability with gold-plated contacts rated for 2500 mating cycles. Perfect for PoE and high-speed Ethernet applications, order online now to ensure rock-solid connections.
Order your Panduit UTP28X3BL Category 6A Patch Cord today and support high-speed networking with reliable, flexible cables designed for data centers and enterprise networks.
Frequently Asked Questions
Where can I buy Panduit UTP28X3BL?
You can click on the BUY or RFQ button to purchase UTP28X3BL from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X3BL?
You can download the UTP28X3BL datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X3BL?
Panduit
