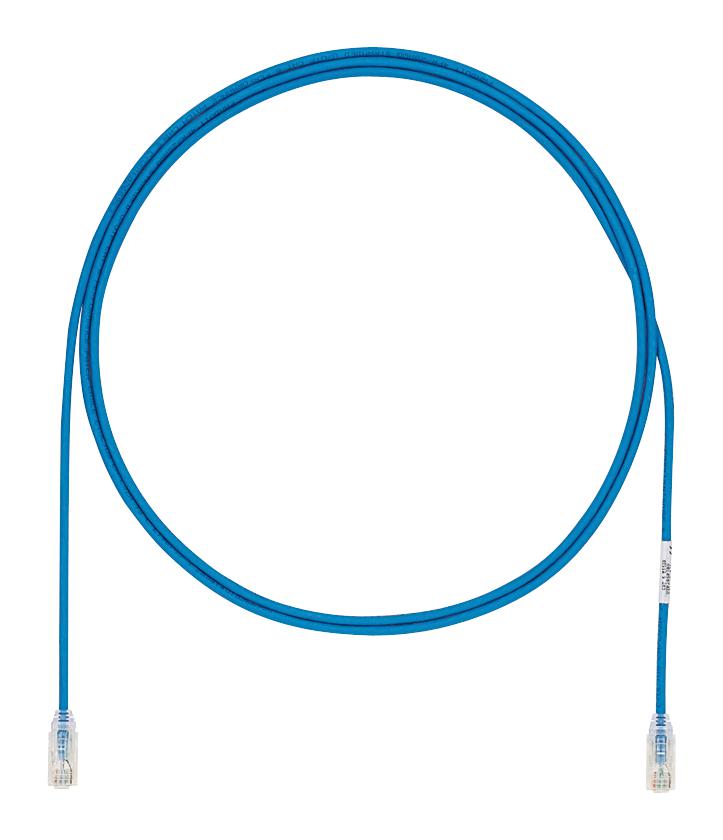

Panduit UTP28X3BU Category 6A Patch Cord
Category 6A performance patch cords designed for high-speed data transmission and network connectivity. Constructed with 28 AWG unshielded twisted pair solid copper conductors, these cords support frequencies up to 500 MHz, exceeding all ANSI/TIA-568.2-D Category 6A requirements. Features include a smaller, flexible diameter for improved cable routing, tangle-free latch, integral pair manager, and various length and color options. Certified for PoE, UL-listed, and compliant with industry standards, they are ideal for data centers, high-speed computing, and Ethernet applications.
Panduit UTP28X3BU Category 6A Patch Cord Specifications:
- Category: 6A/Class E, UTP, unshielded twisted pair, solid copper
- Wire Gauge: 28 AWG
- Cable Diameter: 0.185 in. (4.7mm)
- Frequency Support: Up to 500 MHz
- Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Flammability: CMW/LSZH dual-rated, UL94V-0
- Connectors: Gold plated contacts, 50 microinches of gold
- Mating Cycles: Rated for 2500
- Lengths: 1-50 ft and 0.5-20 meters with specific increments
- Color Options: White, Blue, Red, Yellow, Green, Orange, Gray, Violet, Black
- Certifications: UL Listed, cULus, IEC 60603-7, IEEE 802.3af/at/bt, RoHS
- Support Applications: 10GBASE-T Ethernet, Data center networking, server virtualization, backbone aggregation, high-speed computing
Buy the Panduit Series TX6A Category 6A Patch Cords: UTP28X3BU
Purchase Panduit UTP28X3BU Category 6A patch cords online today and enjoy superior network performance, flexible design options, and industry-leading certifications. Whether you need high-speed Ethernet connections, PoE support, or efficient cable management, these cords are designed for optimal performance. Available in various lengths and colors, they ensure seamless integration into your data center or enterprise network. Upgrade your network infrastructure with confidence, knowing these patch cords meet all industry specifications for speed, safety, and reliability.
Buy Panduit UTP28X3BU patch cords now and experience unmatched reliability and performance for high-speed Ethernet and PoE applications.
Frequently Asked Questions
Where can I buy Panduit UTP28X3BU?
You can click on the BUY or RFQ button to purchase UTP28X3BU from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X3BU?
You can download the UTP28X3BU datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X3BU?
Panduit
