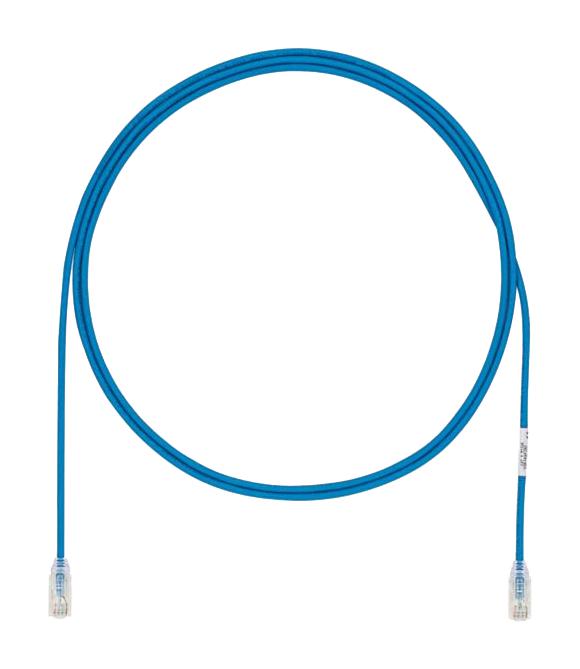

Panduit UTP28X5 Category 6A Patch Cord
Category 6A performance patch cords are designed with 28 AWG unshielded twisted pair solid copper conductors, supporting high-speed Ethernet applications. These cables meet ANSI/TIA-568.2-D and ISO 11801 Class E standards for frequencies up to 500 MHz, ensuring reliable data transmission for data centers and high-density setups. Available in various lengths and colors, they feature a small diameter for easier routing, a robust construction with gold-plated contacts rated for 2500 mating cycles, and optional lock-in devices for added security. They are UL, cULus, and RoHS compliant, supporting PoE applications with excellent thermal stability.
Panduit UTP28X5 Category 6A Patch Cord Specifications:
- Cable Type: Unshielded Twisted Pair (UTP)
- Conductor Material: Solid Copper
- Gauge: 28 AWG
- Diameter: 0.185 in. (4.7mm)
- Frequency Support: Up to 500 MHz
- Standards: ANSI/TIA-568.2-D, ISO 11801 Class E
- Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Connectors: Gold-plated contacts, rated for 2500 mating cycles
- Compliance: UL Listed, cULus, RoHS
- PoE Support: IEEE 802.3af/at and 802.3bt
- Lengths: 1 to 50 ft, 0.5 to 20 meters
- Colors: White, Black, Blue, Red, Yellow, Green, Orange, Gray, Violet
- Certifications: UL 1863, CAN/CSA-C22.2
- Application: Data centers, high-density installations, high-speed network backbones
Buy the Panduit UTP28X5 – Reliable Category 6A Performance Patch Cords for Industrial Applications
Get top-quality Panduit Category 6A Patch Cords with 28 AWG conductors designed for high-speed Ethernet, data centers, and demanding network environments. These patch cords support 10GBASE-T, PoE applications, and are available in multiple lengths and colors for maximum flexibility. With robust construction, gold-plated contacts rated for 2500 mating cycles, and optional lock-in features, they ensure reliable performance, easy management, and enhanced security. Purchase online now and upgrade your network with dependable, high-performance cabling solutions.
Order your Panduit Series UTP28X5 patch cord today and ensure high-speed, reliable network connectivity for your data center or enterprise projects.
Frequently Asked Questions
Where can I buy Panduit UTP28X5?
You can click on the BUY or RFQ button to purchase UTP28X5 from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X5?
You can download the UTP28X5 datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X5?
Panduit
