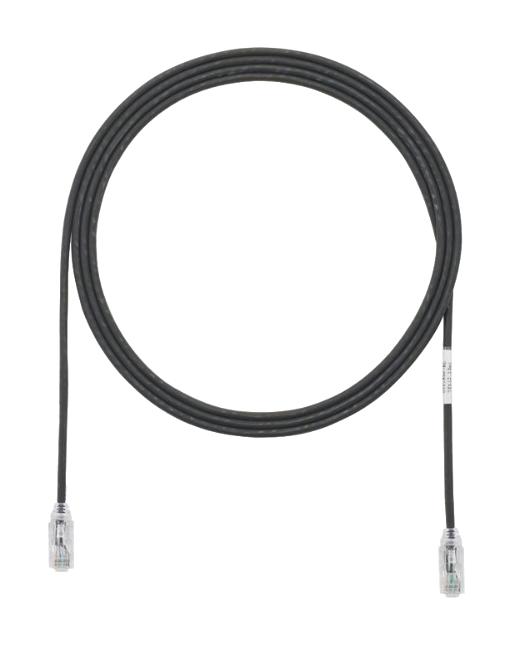

Panduit UTP28X5BL Category 6A Patch Cord
Category 6A performance 28 AWG unshielded twisted pair patch cords designed for high-speed network applications. Crafted from solid copper with a smaller diameter for enhanced flexibility and cable management. Supports 10GBASE-T Ethernet, data center consolidation, backbone aggregation, and high-speed computing. Features include a tangle-free latch, gold-plated contacts rated for 2500 mating cycles, and various length/color options. Compliant with ANSI/TIA-568.2-D, ISO 11801, and PoE standards. Suitable for high-density installations with improved airflow and cooling. Certified and tested for reliable electrical performance, ensuring optimal network connectivity.
Panduit UTP28X5BL Category 6A Patch Cord Specifications:
- Category 6A/Class E, UTP, small diameter patch cords
- Constructed of 28 AWG, unshielded twisted pair, solid copper (dual-rated CM/LSZH)
- Cable diameter: 0.185 in. (4.7mm) nominal
- Supports 96 meter channels (90 meter permanent links, 10 meters patch cords)
- Complies with ANSI/TIA-568.2-D, IEC 60603-7, IEEE 802.3af/at, 802.3bt
- RoHS, UL 1863, CAN/CSA-C22.2, cULus Listed
- Operating temperature: -10°C to 75°C (14°F to 167°F)
- Storage temperature: -40°C to 70°C (-40°F to 158°F)
- Plug contacts: Gold plated phosphor bronze, rated for 2500 cycles
- Lengths available: 1 to 50 ft, 0.5 to 20 meters, with color options
- Flammability: UL94V-0 rated, CMW/LSZH dual-rated
- Supports high-density applications, improved airflow, and cooling
Buy the Buy Panduit UTP28X5BL Part Number UTP28X5BL Online
Enhance your network setup with Panduit high-performance Category 6A Patch Cords. Crafted from solid copper and available in various lengths and colors, these 28 AWG UTP cables provide reliable, high-speed connections supporting 10GBASE-T Ethernet, PoE, and data center applications. Their small, flexible design with a tangle-free latch ensures effortless installation and superior cable management. Certified for safety and performance, these patch cords optimize airflow and cooling in high-density environments. Perfect for data centers, backbone networks, and enterprise systems. Purchase easily online for quick deployment and secure your network’s future today.
Order your Panduit SeriesUTP28X5BL patch cord today and ensure reliable high-speed network connectivity with flexible, high-performance cabling solutions.
