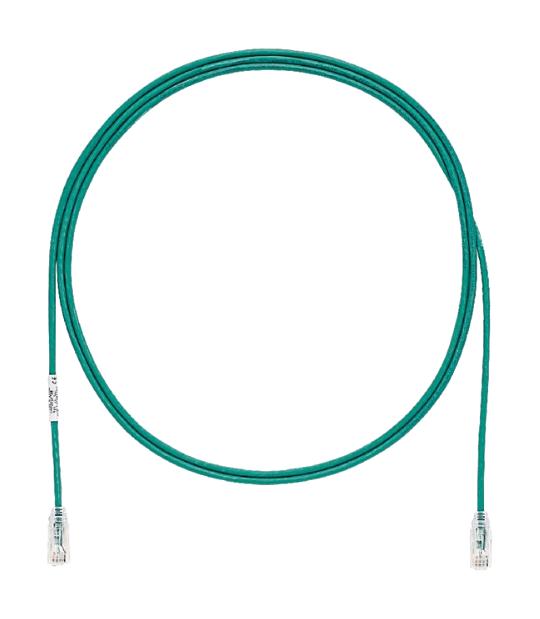

Panduit UTP28X5GR Category 6A Patch Cord
Category 6A patch cords constructed of 28 AWG, unshielded twisted pair, solid copper, and compliant with ANSI/TIA standards. These cables feature a smaller diameter for high density applications, enabling better airflow and easier routing. Equipped with high-performance RJ45 modular plugs, they support PoE applications, high-speed data transfer, and 10GBASE-T Ethernet. These patch cords undergo 100% performance testing for wire map, NEXT, and return loss, ensuring reliable electrical performance. Available in multiple lengths and colors, with optional plug lock-in devices for enhanced security and management.
Panduit UTP28X5GR Category 6A Patch Cord Specifications:
- Category 6A/Class E, unshielded twisted pair, solid copper conductors
- Cable diameter: 0.185 in. (4.7mm) nominal
- Supports 96 meter channels including 90 meter permanent links
- Exceeds ANSI/TIA-568.2-D and ISO 11801 Class E standards up to 500 MHz
- Temperature range: -40°F to 167°F (-40°C to 75°C)
- Conductors: 28 AWG, unshielded twisted pair
- Tested for wire map, NEXT, and return loss performance
- UL Listed, cULus Listed, UL 1863, and CAN/CSA-C22.2 compliant
- Plugs: Gold plated contacts with 50 microinches of gold, rated for 2500 mating cycles
- Flammability: CM/LSZH dual-rated
- Lengths: 1-50 feet, 0.5-20 meters with incremental options
- Colors: Multiple including white, blue, red, yellow, green, orange, gray, violet
- Optional plug lock-in and latch guard available for security
- Supports IEEE 802.3af/at and 802.3bt PoE applications for high power delivery
Buy the Panduit UTP28X5GR – Reliable Category 6A Patch Cords for Industrial Applications
Purchase Panduit UTP28X5GR Category 6A patch cords online for exceptional network performance. These cables feature smaller diameter for tight routing, support PoE and high-speed Ethernet, and are rigorously tested for electrical performance. Available in various lengths and colors, with optional security features like plug lock-in devices. Designed with high-quality materials, including gold-plated contacts rated for 2500 mating cycles, ensuring durability. Perfect for data centers, high-density network setups, and applications requiring reliable, high-speed connectivity. Order today for efficient installation and superior performance.
Get Panduit UTP28X5GR today—built for high-speed data transfer and long-lasting network reliability.
Frequently Asked Questions
Where can I buy Panduit UTP28X5GR?
You can click on the BUY or RFQ button to purchase UTP28X5GR from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X5GR?
You can download the UTP28X5GR datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X5GR?
Panduit
