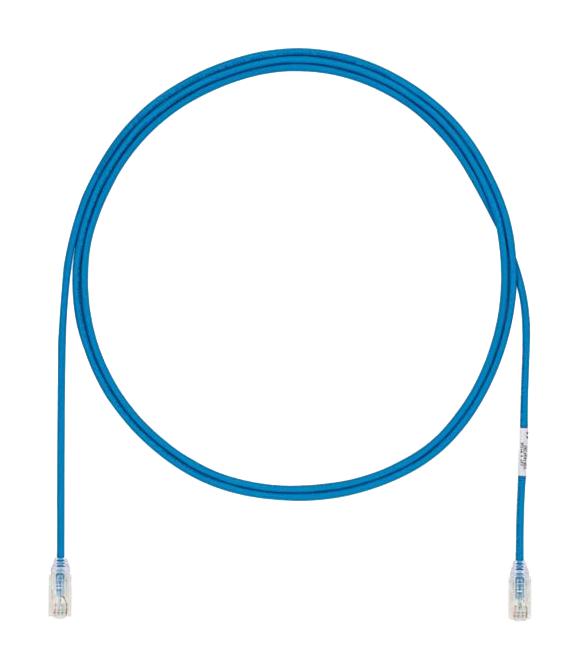

Panduit UTP28X7 Category 6A Patch Cord
Category 6A performance patch cords constructed of 28 AWG unshielded twisted pair solid copper cable, optimized for high-speed data transmission up to 500 MHz. These UL-listed, LSZH-rated patch cords feature a smaller diameter for enhanced flexibility, better cable routing, and improved airflow in high-density network environments. They are compatible with IEEE 802.3af/at and 802.3bt PoE standards, supporting long-distance channels up to 96 meters. Available in various lengths and colors, they ensure reliable performance, easy management, and compliance with industry standards for enterprise and data center applications.
Panduit UTP28X7 Category 6A Patch Cord Specifications:
- Cable Type: Category 6A/Class E, unshielded twisted pair (UTP), solid copper
- Wire Gauge: 28 AWG
- Cable Diameter: 0.185 in (4.7 mm)
- Flammability Rating: CMW/LSZH dual-rated
- Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Connector Contacts: Gold plated phosphor bronze; 50 microinches gold plating
- Supported Standards: ANSI/TIA-568.2-D, ISO 11801 Class E, IEC 60603-7
- PoE Standards: IEEE 802.3af/at, 802.3bt
- Mating Cycles: Rated for 2500
- Lengths: 1 to 50 feet, 0.5 to 20 meters with specific increments
- Color Options: White, Blue, Red, Yellow, Green, Orange, Gray, Violet
- Performance: Supports 96 meter channels, channel performance up to 500 MHz, tested for wire map, NEXT, and return loss
- Operating Temperature: -10°C to 75°C (14°F to 167°F)
Buy the Buy Panbuit UTP28X7 Part Number UTP28X7 Online
Purchase Panbuit UTP28X7 Category 6A patch cords online for high-performance networking. These ultra-flexible, unshielded twisted pair cables feature 28 AWG solid copper conductors, designed for reliable high-speed data transmission up to 500 MHz. They support PoE standards, long-distance channels, and are compliant with ANSI/TIA and ISO standards. Available in multiple lengths and colors, these cords are perfect for data centers, enterprise networks, and high-density installations. Easy to manage, UL listed, and LSZH rated for safety and durability.
Get Panbuit UTP28X7 today—built for high-speed data, flexibility, and reliable PoE applications in demanding network environments.
Frequently Asked Questions
Where can I buy Panduit UTP28X7?
You can click on the BUY or RFQ button to purchase UTP28X7 from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X7?
You can download the UTP28X7 datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X7?
Panduit
