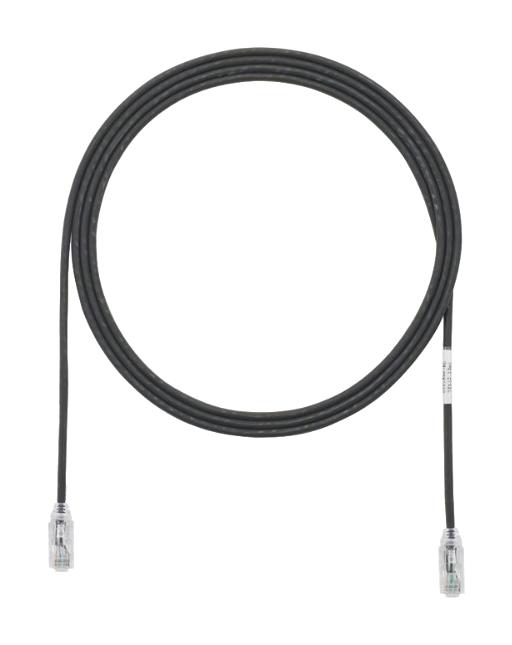

Panduit UTP28X7BL Category 6A Patch Cord
Category 6A performance patch cords designed for high-speed Ethernet applications support 10GBASE-T and data center networking with a smaller diameter, flexible design for improved cable management and airflow. Constructed of 28 AWG unshielded twisted pair solid copper, these cables meet ANSI/TIA-568.2-D and ISO 11801 Class E standards, with enhanced performance at frequencies up to 500 MHz. Available in multiple lengths and colors, they feature durable construction with gold-plated contacts, a tangle-free latch, and optional lock-in devices, ensuring reliable connectivity in demanding environments.
Panduit UTP28X7BL Category 6A Patch Cord Specifications:
- Category 6A/Class E, UTP, 28 AWG, solid copper twisted pair
- Cable diameter: 0.185 in. (4.7mm)
- Flammability: CMW/LSZH dual-rated
- Temperature Range: -10°C to 75°C (14°F to 167°F)
- Connector: Gold-plated contacts, rated for 2500 mating cycles
- Lengths: 1 to 50 feet or 0.5 to 20 meters, with specific increments
- Compliance: ANSI/TIA-568.2-D, ISO 11801 Class E, IEC 60603-7, RoHS, UL 1863
- PoE Support: IEEE 802.3af/at, 802.3bt (types 3 and 4)
- Color options: White, Blue, Red, Yellow, Green, Orange, Gray, Violet
- Operating Temperature: -40°F to 158°F (-40°C to 70°C)
Buy the Buy Panduit UTP28X7BL Category 6A Patch Cord Part Number UTP28X7BL Online
Enhance your network infrastructure with Panduit Category 6A Patch Cords, designed for Ethernet speeds up to 10G and high-density applications. These durable, flexible cables feature a smaller diameter for better cable routing and airflow, supporting PoE and fast data transfer in demanding environments. Constructed with 28 AWG solid copper conductors and gold-plated contacts, they ensure reliable performance and long life. Available in multiple lengths and colors, these cables simplify installation, improve cooling, and deliver consistent electrical performance for enterprise, data center, and high-speed networking applications.
Order your Panduit UTP28X7BL Category 6A Patch Cord today and ensure reliable, high-speed Ethernet connections for your data center or networking project.
