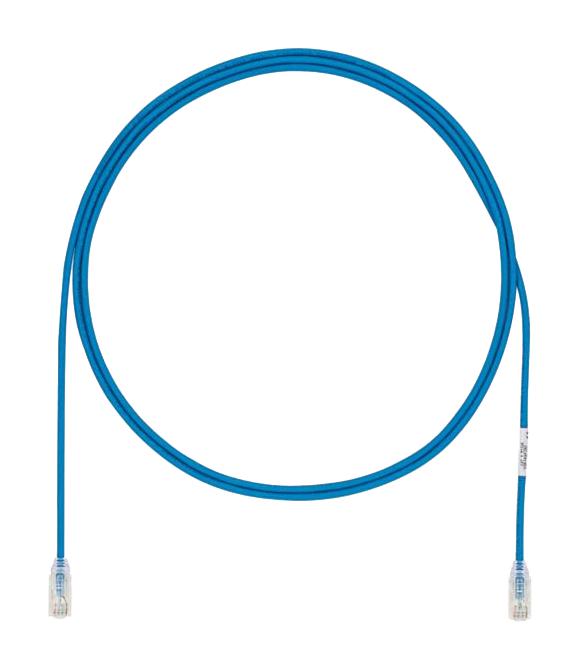

Panduit UTP28X7BU Category 6A Patch Cord
Category 6A Performance patch cords support high-speed Ethernet applications such as 10GBASE-T, data center I/O, and server virtualization. Constructed with 28 AWG, unshielded twisted pair, solid copper conductors, these cables feature a small diameter for flexible routing, reduced congestion, and improved airflow. They meet ANSI/TIA-568.2-D and ISO 11801 Class E standards up to 500 MHz. Features include a tangle-free latch, gold-plated contacts rated for 2500 mating cycles, color-coding options, and optional plug lock-in devices, ensuring high performance, durability, and system flexibility in demanding network environments.
Panduit UTP28X7BU Category 6A Patch Cord Specifications:
- Category 6A/Class E, UTP, small diameter patch cords constructed of 28 AWG, unshielded twisted pair, solid copper (dual-rated CM/LSZH)
- Cable diameter: 0.185 in. (4.7mm)
- Lengths: 1-50 feet and 0.5-20 meters with specific incremental options
- Supports 10GBASE-T Ethernet, PoE applications including IEEE 802.3af/at/bt
- Compliance: ANSI/TIA-568.2-D, ISO 11801 Class E, IEC 60603-7
- Operating temperature: -10°C to 75°C; Storage: -40°C to 70°C
- Flammability: UL94V-0 rated, CM/LSZH dual-rated
- Contacts: Gold plated phosphor bronze, 50 microinches, rated for 2500 mated cycles
- Connector: Modular plug with integral pair manager, tangle-free latch, identification label
- Color options: White/Orange, Orange, White/Green, Blue, White/Blue, Green, White/Brown, and others
Buy the Panduit UTP28X7BU – Reliable Category 6A Patch Cords for Industrial Applications
Purchase Panduit Category 6A Patch Cords online for high-speed data transfer and secure network connections. These durable, flexible, and high-performance patch cords support Ethernet, PoE, and data center applications, ensuring optimal performance and easy installation. Designed with gold-plated contacts, a tangle-free latch, and a compact diameter, they are ideal for space-constrained, high-density environments. Choose your preferred length and color for tailored network management. Order now to enhance your infrastructure with reliable, standards-compliant patch cords engineered for longevity and efficiency.
Get Panduit UTP28X7BU today—built for high-speed Ethernet, data centers, and network reliability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Panduit UTP28X7BU?
You can click on the BUY or RFQ button to purchase UTP28X7BU from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X7BU?
You can download the UTP28X7BU datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X7BU?
Panduit
