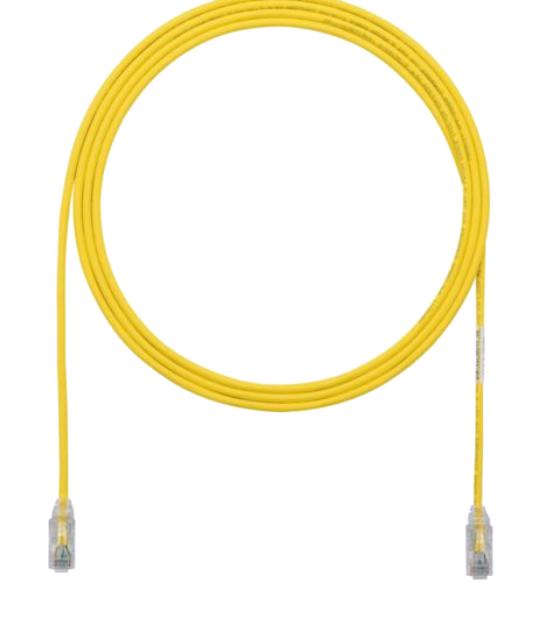

Panduit UTP28X7YL Category 6A Patch Cord
Category 6A/Exceeds ANSI/TIA-568.2-D and ISO 11801 Class E standards, supporting frequencies up to 500 MHz. Constructed with 28 AWG, unshielded, twisted pair, solid copper with a small diameter for high-density applications. Features include a tangle-free latch, gold-plated contacts rated for 2,500 mating cycles, and an integral pair manager. Available in various lengths and colors, these high-performance patch cords are ideal for 10GBASE-T Ethernet, data centers, server virtualization, backbone aggregation, and high-speed computing. Certified for safety, RoHS, and PoE support.
Panduit UTP28X7YL Category 6A Patch Cord Specifications:
- Cable Type: Category 6A UTP
- Wire Gauge: 28 AWG
- Conductors: Solid copper
- Diameter: 0.185 in. (4.7 mm) nominal
- Flammability: CMW/LSZH dual-rated
- Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Connector: RJ45 modular plug, gold plated, rated for 2500 mating cycles
- Compliance: ANSI/TIA-568.2-D, ISO 11801 Class E, IEC 60603-7, RoHS, UL 1863, CAN/CSA-C22.2
- PoE Support: IEEE 802.3af, 802.3at, 802.3bt Type 3 and 4
- Lengths: 1 to 50 feet, 0.5 to 20 meters, with additional length options
- Color Options: White, Blue, Red, Yellow, Green, Orange, Gray, Violet
- Additional Features: Tangle-free latch, identification label, integral pair manager, optional plug lock-in devices
Buy the Panduit UTP28X7YL – Reliable Category 6A Patch Cords for Industrial Applications
Purchase the Panduit UTP28X7YL Category 6A Patch Cord online and enjoy high-performance, reliable connections for data centers, Ethernet networks, and high-speed computing. Designed with 28 AWG unshielded twisted pair copper conductors, a small diameter for easy routing, gold-plated contacts rated for 2,500 cycles, and a tangle-free latch for quick installations. Available in various lengths and colors to suit your network setup. Supports PoE applications up to 500 MHz, ensuring seamless and efficient data transmission for demanding industrial and IT environments.
Get Panduit UTP28X7YL today—built for high-speed network reliability and long-lasting durability.
Frequently Asked Questions
Where can I buy Panduit UTP28X7YL?
You can click on the BUY or RFQ button to purchase UTP28X7YL from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X7YL?
You can download the UTP28X7YL datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X7YL?
Panduit
