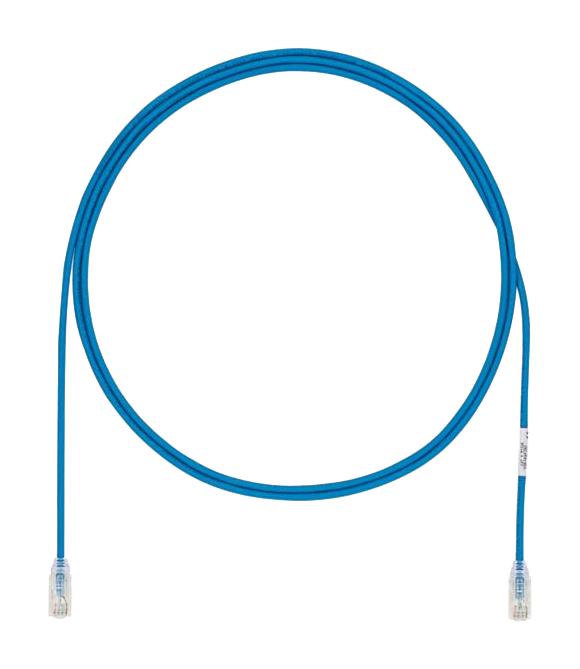

Panduit UTP28X8INBU Category 6A Patch Cord
These Category 6A performance patch cords are made with 28 AWG unshielded twisted pair copper conductors, designed for high-density networking, supporting 10GBASE-T Ethernet, data center virtualization, and backbone applications. They feature a smaller, flexible diameter for easy routing and management, with a robust construction including gold-plated contacts rated for 2,500 mating cycles. Available in various lengths and colors, they pass rigorous compliance standards such as ANSI/TIA-568.2-D, ISO 11801, and IEC, ensuring reliable high-speed data transmission and PoE readiness in demanding environments.
Panduit UTP28X8INBU Category 6A Patch Cord Specifications:
- Conductor: 28 AWG unshielded twisted pair copper
- Cable diameter: 0.185 in. (4.7mm)
- Flammability: CMW/LSZH dual-rated
- Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Rated for 2,500 mating cycles with gold-plated contacts
- Supports 10GBASE-T and PoE applications (IEEE 802.3af/at, 802.3bt)
- Materials: Modular plug with gold-plated phosphor bronze contacts, clear Polycarbonate housing
- Lengths: 1 to 50 feet (every 1 ft), 0.5 to 40 meters (every 0.5m)
- Colors: Off White, Black, Blue, Red, Yellow, Green, Orange, Gray, Violet
- Compliance: ANSI/TIA-568.2-D, ISO 11801, IEC 60603-7, UL 1863, CSA C22.2, RoHS
- Operating Temperature: -10°C to 75°C (14°F to 167°F)
Buy the Panduit Series TX6A-28 Category 6A Patch Cord: UTP28X8INBU
Order Panduit UTP28X8INBU Category 6A patch cords online today to ensure secure, reliable high-speed connections in your data center or networking environment. These flexible, compact cords are ideal for high-density applications, supporting 10G Ethernet, PoE, and virtualization needs. With various lengths and colors, they facilitate easy management and efficient airflow, reducing operational costs. Certified to meet international standards, they provide superior performance with gold-plated contacts rated for 2,500 mating cycles. Shop now for quick delivery and seamless installation.
Buy Panduit UTP28X8INBU patch cords now and enjoy reliable, high-speed networking with excellent flexibility and performance for data centers.
Frequently Asked Questions
Where can I buy Panduit UTP28X8INBU?
You can click on the BUY or RFQ button to purchase UTP28X8INBU from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X8INBU?
You can download the UTP28X8INBU datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X8INBU?
Panduit
