Panduit UTPSP10BUY Network Patch Cord

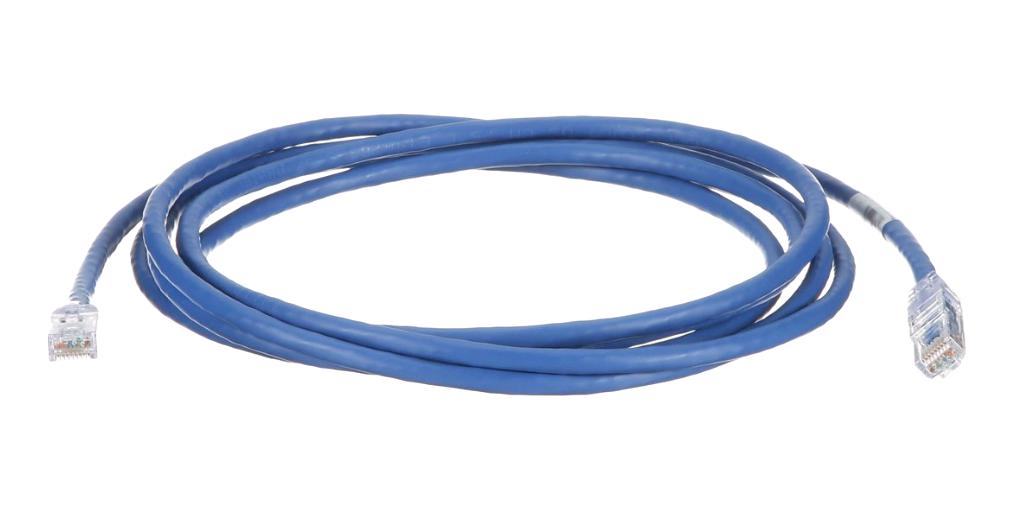

TX6” PLUS UTP Patch Cords are high-performance, category 6/Class E unshielded twisted pair cables designed for reliable network connectivity. Constructed with 24 AWG stranded copper for enhanced performance, these cords feature an enhanced modular plug at each end with strain relief boots. Compatible with T568A and T568B wiring schemes, they support speeds up to 10 Gigabit Ethernet and PoE applications rated for 2500 cycles. Available in various colors and lengths, they meet industry standards including ANSI/TIA-568.2-D, ISO 11801, UL 1863, and IEC 60603-7, ensuring durability and top performance in high-density network environments.
Panduit UTPSP10BUY Network Patch Cord Specifications:
- Cable Type: Category 6/Class E UTP unshielded twisted pair
- Wire Gauge: 24 AWG stranded copper
- Cable Diameter: 0.235 in. (6.0 mm)
- Connectors: Enhanced modular plug with strain relief boot
- Compatibility: T568A and T568B wiring schemes
- Performance Standards: Exceeds ANSI/TIA-568.2-D and ISO 11801 Class E
- Frequency Range: 1 to 250 MHz
- Rated for: 10GBASE-T, PoE up to 2500 cycles, 802.3af/at/bt
- Flammability: CM or LSZH rated
- Ratings: UL 1863 approved, RoHS compliant, IEC 60603-7
- Cable Colors & Lengths: Various options with color coding, from 1 to 40 feet or meters
- Reinforced latch: Tangle-free design for easy engagement
- Additional Features: Identification labels, optional color bands, lock-in RJ45 device
- Durability: Rated for up to 2500 mating cycles
Buy the Buy Panduit UTP Patch Cord Part Number UTPSP10 Online
Secure your network's performance by purchasing Panduit's high-quality UTP patch cords online. Designed with stranded copper conductors and reinforced strain relief boots, these cables support high-speed Ethernet, PoE, and broadband applications, ensuring optimal performance for a wide range of networking needs. Available in multiple colors and lengths, they are compatible with industry standards including ANSI/TIA-568.2-D and IEC 60603-7, providing reliability, flexibility, and future-proofing for your high-density installations and data centers.
Order your Panduit SeriesUTPSP10 high-performance patch cord today and ensure reliable, fast network connectivity with superior durability.
Frequently Asked Questions
Where can I buy Panduit UTPSP10BUY?
You can click on the BUY or RFQ button to purchase UTPSP10BUY from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTPSP10BUY?
You can download the UTPSP10BUY datasheet or visit the Panduit website for support.
Who is the manufacturer of UTPSP10BUY?
Panduit
