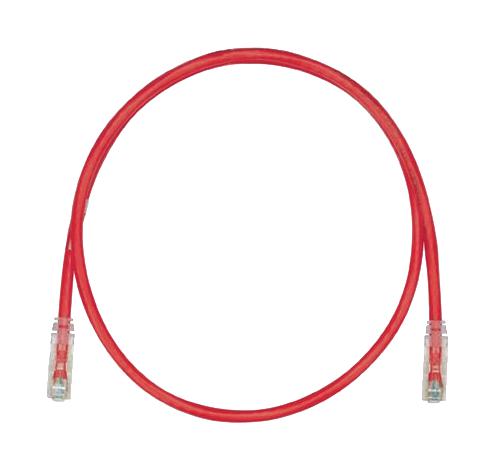

Panduit UTPSP10RDY Network Patch Cord
TX6” PLUS UTP Patch Cords are designed for high-performance network connections, constructed with 24 AWG stranded copper cable suitable for various applications including Ethernet and VoIP. These category 6 patch cords exceed ANSI/TIA-568.2-D and ISO 11801 Class E standards for frequencies up to 250 MHz. Featuring a stranded copper design, color coding options, robust construction rated for 2500 cycles, and compatibility with T568A/T568B wiring schemes, they deliver reliable, noise-free connectivity in high-density environments and are ideal for digital video, broadband, and industrial networking.
Panduit UTPSP10RDY Network Patch Cord Specifications:
- Cable Type: 24 AWG unshielded twisted pair stranded copper
- Cable Diameter: 0.235 inches (6.0mm)
- Performance Standard: Exceeds ANSI/TIA-568.2-D and ISO 11801 Class E
- Frequency Range: Up to 250 MHz
- Connectors: Modular plugs with enhanced performance, centered de-embedded plug
- Plating: Contacts plated with 50 microinches of gold
- Compliance: UL 1863, IEC 60603-7, RoHs, FCC, ANSI/TIA-1096-A
- Flammability: CM or LSZH rated
- Rated for 2500 mating cycles
- Color Options: Multiple colors, optional color bands
- Application: Ethernet 10/100/1000/10GBASE-T, ATM, digital video, VoIP
- Design Features: Tangle-free latch, strain relief boot, integral pair manager, keyed version available, RJ45 lock-in device
Buy the Panduit Series TX6 Plus Network Cable: UTPSP10RDY
Order the Panduit UTPSP10RDY high-performance Category 6 patch cord online today. Designed for fast, reliable Ethernet, VoIP, and video connections, this rugged, color-coded cable supports up to 250 MHz frequencies, withstands 2500 mating cycles, and features easy-to-manage stranded copper construction. Ideal for high-density applications, its backward compatibility, T568A/B wiring scheme support, and robust construction ensure seamless integration into existing systems. Enhance your network infrastructure with this dependable, professionally rated patch cord today.
Buy Panduit UTPSP10RDY high-performance patch cable now and experience unmatched reliability, clarity, and ease of installation in your networking environment.
