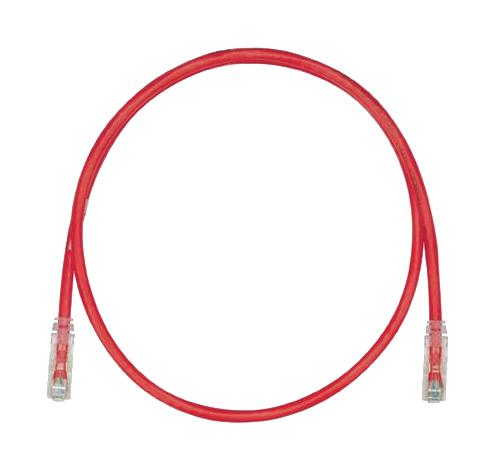

Panduit UTPSP3RDY Network Patch Cord
The TX6 Plus UTP Patch Cords are Category 6/Class E unshielded twisted pair cables designed for high-performance network connections. Constructed with 24 AWG stranded copper and equipped with enhanced modular plugs, these cords support frequencies up to 250 MHz, exceeding industry standards for all networking applications. Available in multiple colors and lengths, they feature strain relief boots, tangle-free latches, and robust construction rated for 2500 mating cycles. These patch cords support PoE, AX, and broadband applications, ensuring reliable, high-speed connectivity in high-density environments.
Panduit UTPSP3RDY Network Patch Cord Specifications:
- Category: 6/Class E, UTP
- Cable Diameter: 0.235 inch (6.0 mm)
- Wire Gauge: 24 AWG stranded copper
- Performance Frequency: Up to 250 MHz
- Connector: Enhanced modular plug with strain relief boot
- Compliance: ANSI/TIA-568.2-D, ISO 11801, IEC 60603-7
- UL Rated: UL 1863
- RoHS: Compliant
- PoE: Rated for 2500 cycles with IEEE 802.3af/at, 802.3bt
- Flammability: CM or LSZH
- Cable Color: Multiple options including White/Orange, Orange, White/Green, Blue, White/Blue, Green, White/Brown, Brown
- Mating Cycles: Rated for 2500
- Cable Lengths: 1 to 20 feet, 1 to 10 meters, including custom lengths
- Additional Features: Tangle-free latch, keyed version, color bands, RJ45 lock-in device, high-density design
Buy the Panduit Series TX6 Plus Network Patch Cords: UTPSP3RDY
Order the Panduit TX6 Plus Network Patch Cord online today and experience superior network performance for your high-density applications. These Category 6 UTP cables are designed for fast, reliable Ethernet, PoE, and broadband connections, supporting up to 250 MHz frequencies. With robust construction, multiple color options, and flexible lengths, these patch cords ensure seamless connectivity and easy management in data centers and office networks. Protect your network infrastructure by choosing trusted quality and quick online purchasing options for immediate deployment.
Get Panduit UTPSP3RDY today—built for high-speed Ethernet and reliable network connections.
