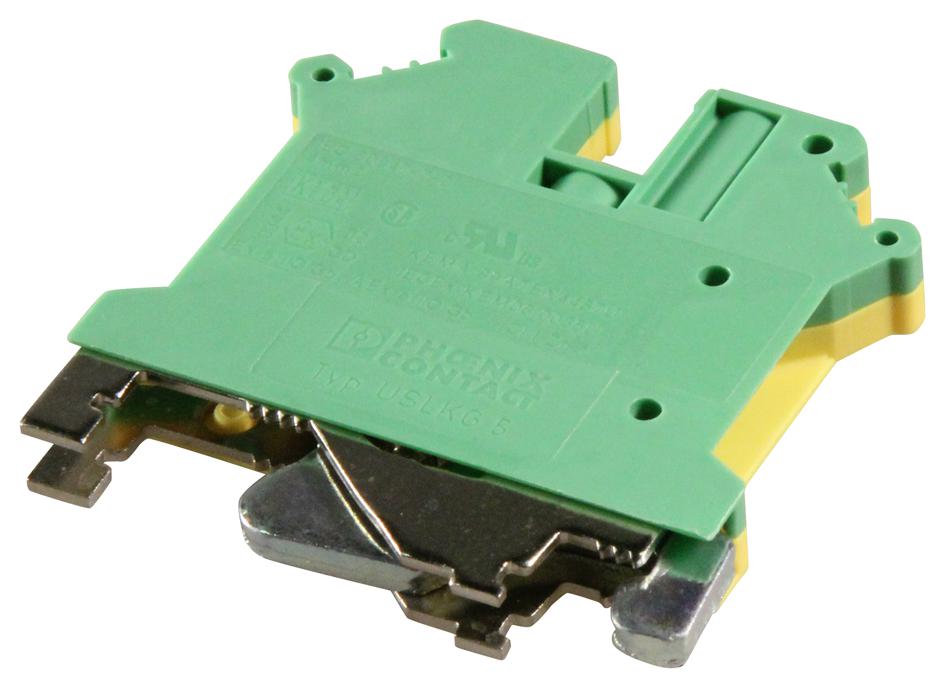

Phoenix Contact 0441504 Grounding terminal block
This is a Phoenix Contact feed-through terminal block designed for grounding applications. It features a screw connection and is suitable for wire sizes ranging from #26 to #10. The terminal block is color-coded green-yellow for grounding purposes, ensuring easy identification and reliable connection.
Phoenix Contact 0441504 Grounding terminal block Specifications:
- Connection method: Screw connection
- Number of connections: 2
- Cross section: 0.2 mm² - 6 mm²
- Wire Range: 24 - 10 AWG
- Width: 6.2 mm
- Color: Green-yellow
- Mounting types: NS 35/7.5, NS 35/15, NS 32
- Operating temperature: -60 °C to 105 °C (short-term up to 130°C)
- Ambient temperature (storage/transport): -25 °C to 60 °C (~70 °C short term), assembly & actuation: -5 °C to 70 °C
- Standards & Approvals: UL Recognized, cUL Recognized, KEMA-KEUR, CSA Listed, IECEx, ATEX, DNV GL, LR, KR
Buy the Phoenix Contact USLKG 5 – Reliable Grounding Terminal Block for Industrial Applications
Order the Phoenix Contact grounding terminal block online today for dependable grounding connections. Designed with screw terminals, it supports wire sizes from 24 to 10 AWG. Its green-yellow color coding ensures easy identification in complex systems. Install easily on various DIN rail types including NS 35/7.5, NS 35/15, and NS 32. Operating over a temperature range of -60 to 105 degrees Celsius, it complies with multiple international safety standards including UL, CSA, and IECEx for peace of mind in critical applications.
Get Phoenix Contact USLKG 5 today—built for precise grounding connections in industrial environments and long-lasting durability.
Frequently Asked Questions
Where can I buy Phoenix Contact 0441504?
You can click on the BUY or RFQ button to purchase 0441504 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 0441504?
You can download the 0441504 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 0441504?
Phoenix Contact
