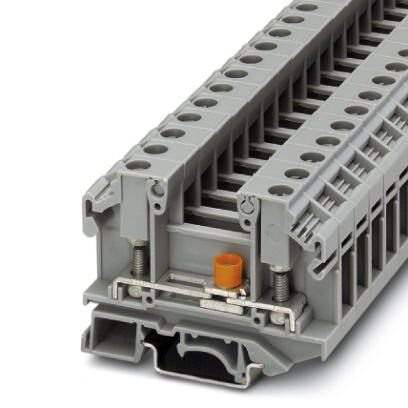

Phoenix Contact 0790462 Disconnect Terminal Block
The PHOENIX CONTACT OTTA 6-T-P/P disconnect terminal block is a versatile solution for connecting and disconnecting conductors in various industrial applications. Featuring a bolt connection, test socket screws, and a disconnect slide, this terminal block provides a secure and convenient connection. It is suitable for a wide range of conductor sizes, from 0.1 to 6 mm², and is designed to withstand harsh environments. The terminal block's robust construction and reliable performance make it ideal for use in control cabinets, power distribution systems, and other critical applications.
Phoenix Contact 0790462 Disconnect Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 6 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1
- Maximum load current: 36 A (with 6 mm² conductor cross section)
- Nominal current IN: 36 A
- Nominal voltage UN: 800 V (the nominal voltage applies to insulated cable lugs)
- Open side panel: Yes
- Result of surge voltage test: Test passed
- Surge voltage test setpoint: 9.8 kV
- Result of power-frequency withstand voltage test: Test passed
- Power frequency withstand voltage setpoint: 2.2 kV
- Result of the test for mechanical stability of terminal points: Test passed
- Result of tight fit on support: Test passed
- Tight fit on carrier: NS 32/NS 35
- Setpoint: 5 N
- Result of voltage-drop test: Test performed
- Requirements, voltage drop: ≤ 6,4 mV
- Result of temperature-rise test: Test passed
- Short circuit stability result: Test passed
- Conductor cross section short circuit testing: 6 mm²
- Short-time current: 0.72 kA
- Result of thermal test: Test passed
- Proof of thermal characteristics (needle flame) effective duration: 30 s
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Width: 11 mm
- End cover width: 1.5 mm
- Length: 69 mm
- Height NS 35/7,5: 52 mm
- Height NS 35/15: 59.5 mm
- Height NS 32: 57 mm
- Connection method: Bolt connection
- Conductor cross section solid min.: 0.1 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 10
- Conductor cross section flexible min.: 0.1 mm²
- Conductor cross section flexible max.: 6 mm²
- Cable lug connection according to standard: DIN 46 234
- Min. cross section for cable lug connection: 0.1 mm²
- Max. cross section for cable lug connection: 6 mm²
- Hole diameter, min.: 4.3 mm
- Cable lug width, max.: 9.6 mm
- Bolt diameter: 4 mm
- Cable lug connection according to standard (2nd): DIN 46237
- Min. cross section for cable lug connection (2nd): 0.5 mm²
- Max. cross section for cable lug connection (2nd): 2.5 mm²
- Screw thread: M4
- Tightening torque, min: 1.5 Nm
- Tightening torque max: 1.8 Nm
- eCl@ss 4.0: 27141126
- eCl@ss 4.1: 27141126
- eCl@ss 5.0: 27141126
- eCl@ss 5.1: 27141126
- eCl@ss 6.0: 27141126
- eCl@ss 7.0: 27141126
- eCl@ss 8.0: 27141126
- ETIM 2.0: EC000902
- ETIM 3.0: EC000902
- ETIM 4.0: EC000902
- ETIM 5.0: EC000902
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
