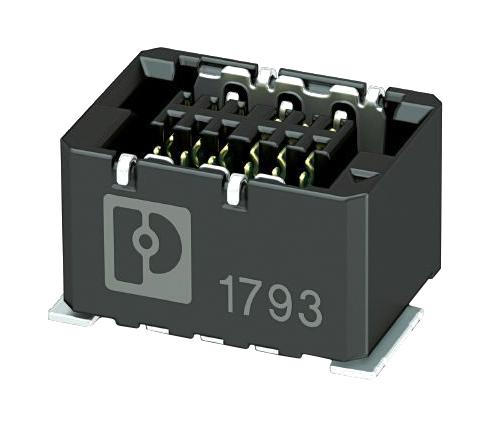

Phoenix Contact 1043711 SMD Female Connector Shielded
The Phoenix Contact FP 0,8/ 32-FV-SH 4,85 is a shielded SMD female connector designed for high-density applications requiring reliable and stable data transfer. Featuring gold-plated contacts, it ensures long-term signal integrity. The ScaleX contact system provides robustness and tolerance compensation, protecting contacts from damage. This connector is suitable for various device designs and offers flexibility in terms of position count and stack heights, making it ideal for industrial automation, telecommunications, and other demanding environments. It is RoHS compliant and free of whiskers, ensuring environmental responsibility and long-term reliability.
Phoenix Contact 1043711 SMD Female Connector Shielded Specifications:
- Nominal current at 20 °C: 1.7 A
- Test voltage: 500 V AC
- Number of positions: 32
- Pitch: 0.8 mm
- Color: black
- Contact surface: Gold
- Mounting: SMD soldering
- Plug-in system: FINEPITCH 0,8 mm shielded
- Type of contact: Female connector
- Electrical characteristic: shielded
- Range of articles: FP 0,8/...-FV-SH 4,85
- Number of levels: 2
- Number of potentials: 32
- Nominal current at 20 °C (12-pos. version): 1.7 A
- Contact material: Cu alloy
- Surface characteristics: Selective coating
- Metal surface contact area (top layer): Gold (Au)
- Metal surface contact area (middle layer): Nickel (Ni)
- Metal surface soldering area (top layer): Tin (Sn)
- Metal surface soldering area (middle layer): Nickel (Ni)
- Insulating material: LCP
- Insulating material group: IIIa
- CTI: 150
- Flammability rating: V0
- Length (l): 7.1 mm
- Width (w): 17.58 mm
- Height (h): 5.45 mm
- Height (without solder pin): 4.85 mm
- Coplanarity: ≤ 0.1 mm
- Contact cover: 0.8 mm
- Overlap length: 1.5 mm
- Medium offset: ± 0.7 mm
- Angular tolerance (longitudinal): ± 2 °
- Angular tolerance (transverse): ± 4 °
- Stack height (with MV-SH 1,15): 6 mm
- Stack height (with MV-SH 2,65): 7.5 mm
- Packing unit: 500 pc
- Minimum order quantity: 500 pc
- Custom tariff number: 85366990
- Moisture Sensitive Level: MSL 1
- Classification temperature Tc: 260 °C
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- Ambient temperature (assembly): -5 °C ... 100 °C
- Ambient temperature (operation): -55 °C ... 125 °C
- Air clearances and creepage distances: min. 0.25 mm
