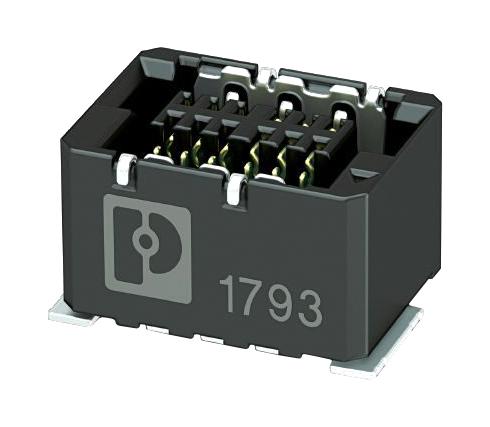

Phoenix Contact 1043713 SMD Female Connector Shielded
The Phoenix Contact FP 0,8/ 52-FV-SH 4,85 is a shielded SMD female connector designed for robust and reliable connections in various industrial applications. Its gold-plated contacts ensure stable signal transfer over time, while the ScaleX contact system provides high tolerance compensation and contact protection. The connector's flexible design allows for different numbers of positions and stack heights, making it suitable for a wide range of device designs. It is ideal for applications requiring high-performance and reliable connectivity, such as data transmission and power distribution.
Phoenix Contact 1043713 SMD Female Connector Shielded Specifications:
- Nominal current at 20 °C: 1.7 A
- Test voltage: 500 V AC
- Number of positions: 52
- Pitch: 0.8 mm
- Color: black
- Contact surface: Gold
- Mounting: SMD soldering
- Plug-in system: FINEPITCH 0,8 mm shielded
- Type of contact: Female connector
- Electrical characteristic: shielded
- Range of articles: FP 0,8/...-FV-SH 4,85
- Number of levels: 2
- Number of potentials: 52
- Contact material: Cu alloy
- Surface characteristics: Selective coating
- Metal surface contact area (top layer): Gold (Au)
- Metal surface contact area (middle layer): Nickel (Ni)
- Metal surface soldering area (top layer): Tin (Sn)
- Metal surface soldering area (middle layer): Nickel (Ni)
- Insulating material: LCP
- Insulating material group: IIIa
- CTI: 150
- Flammability rating: V0
- Length: 7.1 mm
- Width: 25.58 mm
- Height: 5.45 mm
- Height (without solder pin): 4.85 mm
- Coplanarity: ≤ 0.1 mm
- Contact cover: 0.8 mm
- Overlap length: 1.5 mm
- Medium offset: ± 0.7 mm
- Angular tolerance: ± 2 °
- Stack height: 6 mm
- Packaging unit: 500 pc
- Minimum order quantity: 500 pc
- Custom tariff number: 85366990
- Moisture Sensitive Level: MSL 1
- Classification temperature Tc: 260 °C
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- Ambient temperature (assembly): -5 °C ... 100 °C
- Ambient temperature (operation): -55 °C ... 125 °C
- Air clearances and creepage distances: min. 0.25 mm
