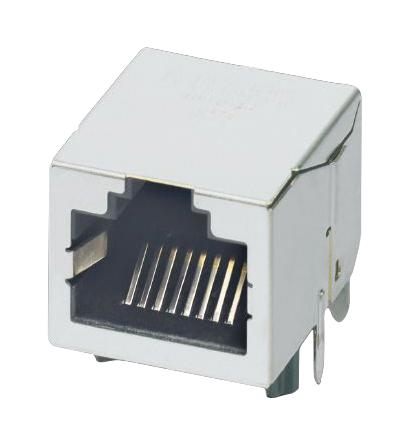

Phoenix Contact 1091946 RJ45 Socket Insert
The PHOENIX CONTACT CUC-IND-J1ST-A/R4LS RJ45 socket insert is engineered for robust and reliable data transmission in industrial environments. Its design is perfectly matched to the RJ45 INDUSTRIAL connector, ensuring secure connectivity. The insert offers high shock and vibration resistance, an extended temperature range, and 360° shielding for dependable performance. It enables data transmission speeds of up to 10 Gbps in accordance with CAT6A standards and features automated handling thanks to its reflow capability, making it suitable for automated manufacturing processes. This component is ideal for applications requiring high-speed data transfer and durability.
Phoenix Contact 1091946 RJ45 Socket Insert Specifications:
- Connection method: Solder connection
- Number of positions: 8
- Rated voltage (III/2): 72 V DC
- Rated surge voltage (III/3): 1.5 kV
- Overvoltage category: II
- Insertion/withdrawal cycles: > 750
- Degree of pollution: 2
- Weight: 5.7 g
- Ambient temperature (operation): -40 °C ... 105 °C
- Contact surface material: AU
- Contact material: Copper alloy
- Width: 16.2 mm
- Height: 16.5 mm
- Length: 17.1 mm
- Mounting type: PCB mounting
- GRP transmission properties: Data transmission 10 Gbps
- Transmission speed: 10 Gbps
- Rated current: 1.5 A
- Halogen-free: yes
- Flammability rating according to UL 94: V0
- eCl@ss 9.0: 27440205
- ETIM 5.0: EC000438
