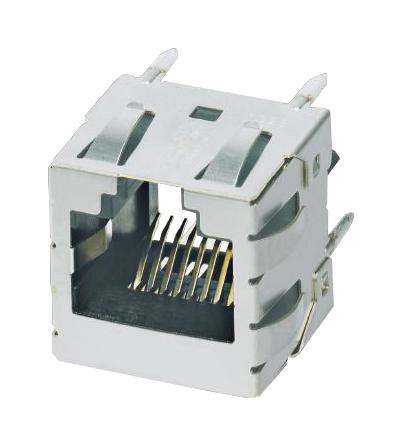

Phoenix Contact 1099279 Ethernet Connector
The RJ45 socket insert is designed for industrial Ethernet connections, supporting data transmission speeds up to 10 Gbps in accordance with CAT6A standards. It features IP20 degree of protection, 8 positions, and solder connection method for robust and reliable connectivity in demanding environments. Made from copper alloy with AU contact surface, and equipped with a PCB mounting style. Its high shock, vibration resistance, and extended temperature range of -40°C to 105°C make it ideal for industrial networking applications. It is also UL, cUL, and EAC recognized with flame-retardant properties and comprehensive standards compliance.
Phoenix Contact 1099279 Ethernet Connector Specifications:
- Connection method: Solder connection
- Number of positions: 8
- Rated voltage: 1500 V (Core/Shield)
- Transmission speed: 10 Gbps
- Maximum current: 15A
- Degree of pollution: 2
- Material: Copper alloy with AU contact surface
- Dimensions: Width 18mm, Height 16.8mm, Length 17.9mm
- Ambient temperature (operation): -40°C to 105°C
- Flammability rating according to UL 94 VO
- Standards: UL, cUL, EAC recognized, IEC 11801:2002 CATS
- Protection degree: IP20
- Vibration resistance: High, suited for industrial environments
Buy the Phoenix Contact 1099279 – Reliable Industrial Ethernet Connector for Data Transmission
Experience reliable industrial Ethernet connectivity with this RJ45 socket insert, supporting 10 Gbps speeds and IP20 protection. Its rugged design offers high shock and vibration resistance, suitable for demanding environments. Made from high-quality copper alloy with AU contact surface, it ensures efficient and durable data transmission. The solder connection method provides secure mounting, while its broad temperature range accommodates harsh conditions from -40°C to 105°C. Recognized by UL, cUL, and EAC standards, it is ideal for industrial networks requiring high performance and reliability.
Get Phoenix Contact 1099279 today—built for industrial-grade connectivity with high shock and vibration resistance.
Frequently Asked Questions
Where can I buy Phoenix Contact 1099279?
You can click on the BUY or RFQ button to purchase 1099279 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1099279?
You can download the 1099279 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1099279?
Phoenix Contact
