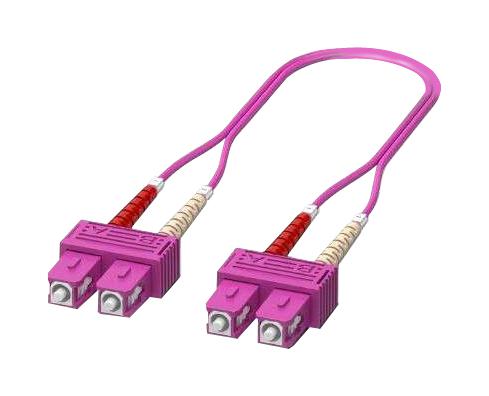

Phoenix Contact 1115423 Fiber Optic Patch Cable
This multi-mode OM4 duplex fiber optic patch cable features SC-SC connectors with UPC polishing and a 2-meter length, ideal for indoor fiber optics distribution. Made with flame-retardant, halogen-free LSZH material, it complies with IEC and UL standards, ensuring safety and durability in critical communication applications. The cable’s violet outer sheath and 8-shaped glass fiber structure provide high performance, resistance to environmental conditions, and excellent flexibility. Suitable for termination devices and fiber optic networks, it supports over 500 insertion cycles for reliable long-term use.
Phoenix Contact 1115423 Fiber Optic Patch Cable Specifications:
- Cable length: 2.00 m
- Cable type: Multimode fiberglass
- Cable structure: Figure 8 cable
- External sheath color: Violet
- External cable diameter: 2.00 mm
- Cable weight: 5.30 kg/km
- Material: LSZH (Low Smoke Zero Halogen)
- Flammability rating: UL 94 VO
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Insertion/withdrawal cycles: 500
- Ambient temperature: -20°C to 60°C
- Resistance to oil: Not resistant
- Concentration of fumes: IEC 61034
- Halogen-free: Yes, IEC 60754-2
- Behavior in fire: No corrosive or toxic fumes
Buy the Phoenix Contact FOC-SC:PA-SC:PA-OM4:D01/2 – Reliable Fiber Optic Patch Cable for Industrial Applications
Enhance your network with the reliable Phoenix Contact fiber optic patch cable, designed for indoor fiber distribution. With 2 meters of OM4 multimode glass fiber, SC-SC connectors, and a violet LSZH sheath, this cable ensures high performance, safety, and durability. It supports over 500 insertion cycles, complies with IEC and UL standards, and is halogen-free with excellent flame retardant properties. Perfect for fiber termination and distribution, this patch cable offers ease of installation and long-term reliability for critical communication infrastructures.
Get Phoenix Contact FOC-SC:PA-SC:PA-OM4:D01/2 today—built for high performance and long-lasting durability in fiber optic networks.
Frequently Asked Questions
Where can I buy Phoenix Contact 1115423?
You can click on the BUY or RFQ button to purchase 1115423 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1115423?
You can download the 1115423 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1115423?
Phoenix Contact
