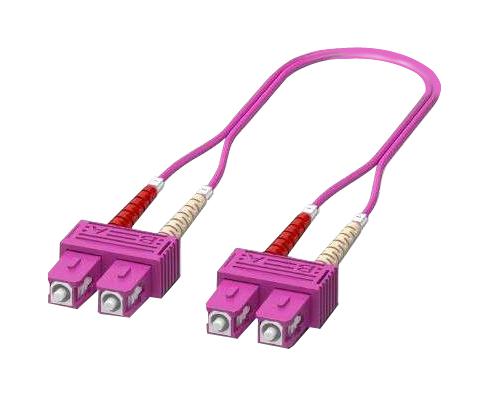

Phoenix Contact 1115424 Fiber Optic Patch Cable
This multi-mode OM4 duplex fiber optic patch cable features SC connectors with UPC polishing, suitable for indoor fiber optic distribution and termination. Constructed from halogen-free flame retardant material, it boasts a length of 1 meter, external Violet LSZH sheath, and a cable diameter of 2.00 mm. Designed to meet IEC 61300-3-4 and IEC 61300-3-6 standards, the cable offers 500 insertion/withdrawal cycles and resistance to temperature ranges from -20°C to 60°C. It is UL 94VO rated for flammability and RoHS compliant, ensuring safety and environmental standards are met.
Phoenix Contact 1115424 Fiber Optic Patch Cable Specifications:
- Cable type: Multimode fiberglass
- Length: 1.00 meter
- External sheath: LSZH, violet color
- External cable diameter: 2.00 mm
- Cable weight: 5.30 kg/km
- Material: Halogen-free flame retardant
- Flammability rating: UL 94VO
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Temperature range: -20°C to 60°C
- Insertion/withdrawal cycles: 500
- Resistance to oil: Not resistant
- Fume concentration: IEC 61034 compliant
- Environmentally friendly use period: 50 years
- Certification: RoHS compliant
Buy the Phoenix Contact 1115424 – Reliable OM4 Fiber Patch Cable for Industrial Applications
Enhance your fiber optic network with this high-quality OM4 duplex patch cable. Designed for indoor use, it features SC connectors with UPC polishing, a violet LSZH sheath, and a length of 1 meter. This flame-retardant, halogen-free cable ensures safety and compliance with industry standards such as IEC 61300-3-4 and IEC 61300-3-6. Ideal for distribution and termination in demanding environments, it offers 500 insertion cycles, resistance to high temperatures, and a lifespan of over 50 years, making it a trustworthy choice for professionals.
Buy Phoenix Contact 1115424 now and experience unmatched reliability and performance in fiber optic communications with flame retardant features and high durability.
