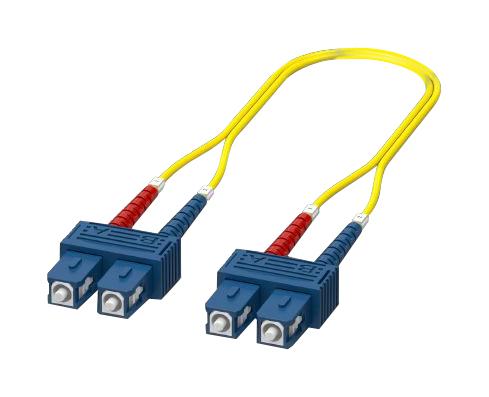

Phoenix Contact 1115547 Fiber Optic Jumper
This single-mode OS2 duplex fiber optic jumper cable is 3 meters long, with SC-SC connectors, UPC polishing, and a yellow LSZH external sheath. Designed for indoor fiber optic distribution and termination, it complies with IEC standards IEC 61300-3-4 and IEC 61300-3-6, supporting up to 500 insertion/removal cycles. Made of halogen-free, flame-retardant material, it handles ambient temperatures from -20°C to 60°C and offers excellent performance in harsh environments. An ideal choice for reliable, high-speed fiber optic connections in professional networking setups.
Phoenix Contact 1115547 Fiber Optic Jumper Specifications:
- Cable length: 3.00 meters
- Cable type: Single-mode fiberglass
- External sheath color: Yellow
- External cable diameter: 2.00 mm
- Cable weight: 5.30 kg/km
- Material: LSZH (low smoke zero halogen)
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Flammability rating: UL 94 VO
- Ambient temperature: -20°C to +60°C
- Insertion/withdrawal cycles: Up to 500
- Resistance: Not resistant to oil, gasoline, acids, and lyes
- Fume concentration: In accordance with IEC 61034
- Environmental compliance: China RoHS, 50-year use period
Buy the Buy Phoenix Contact Fiber Optic Cable Part Number 1115547 Online
Discover the convenience of ordering the Phoenix Contact fiber optic jumper cable 1115547 online. This 3-meter single-mode OS2 fiber cable features SC-SC connectors with UPC polishing, a yellow LSZH sheath, and is ideal for indoor fiber optic distribution and termination. Its durable design supports up to 500 insertion cycles, complies with IEC standards, and is halogen-free, flame-retardant, and environmentally friendly. Perfect for professional networking installations, allowing you to confidently upgrade your fiber infrastructure with quick, reliable online purchasing options.
Order your Phoenix Contact fiber optic jumper cable 1115547 today and ensure high-quality, reliable indoor fiber connections with durable, halogen-free design.
