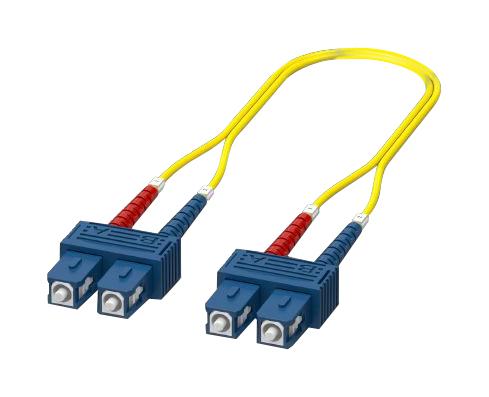

Phoenix Contact 1115551 fiber optic jumper
The single-mode OS2 duplex jumper cable with SC-SC connectors features UPC polishing, designed for indoor fiber optics distribution and termination. Made from halogen-free flame-retardant material, it complies with RoHS standards. The fiber optic cable is 0.5 meters long with a yellow LSZH outer sheath, external diameter of 2.00 mm, and weight of 5.30 kg/km. It adheres to IEC 61300-3-4 and IEC 61300-3-6 standards, supports 500 insertion/withdrawal cycles, and is suitable for indoor applications requiring reliable, high-performance fiber optic connections.
Phoenix Contact 1115551 fiber optic jumper Specifications:
- Cable type: Single-mode fiberglass
- Cable length: 0.50 meters
- External sheath color: Yellow
- External cable diameter: 2.00 mm
- Cable weight: 5.30 kg/km
- Material: LSZH (Low Smoke Zero Halogen)
- Flammability rating: UL 94V-0
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Resistance to oil: Not resistant
- Environment: Indoor use, RoHS compliant
- Ambient temperature: -20°C to +60°C
- Insertion/withdrawal cycles: 500
- Fume concentration: IEC 61034
- Hazardous substances: Complies with IEC 60754-2
- Environmental life period: 50 years
- Fire behavior: No corrosive or toxic fumes
Buy the Phoenix Contact 1115551 – Reliable Fiber Optic Jumper for Industrial Applications
Purchase the Phoenix Contact fiber optic jumper cable today for high-quality indoor fiber connections. This 0.5-meter single-mode OS2 duplex cable features SC-SC connectors, UL 94V-0 flammability rating, and is made from halogen-free LSZH material. Perfect for fiber optics distribution, it ensures reliable, high-performance connectivity while adhering to international standards. With excellent environmental resistance, support for 500 insertion cycles, and RoHS compliance, this jumper offers durability and safety for your industrial and commercial fiber optic applications.
Get Phoenix Contact 1115551 today—designed for indoor fiber optics distribution with high performance and long-lasting durability.
