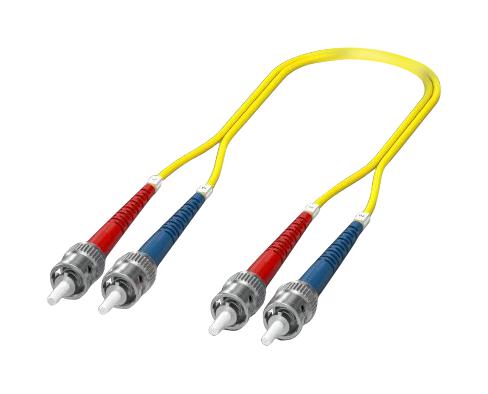

Phoenix Contact 1115563 Fiber Optic Patch Cable
This single-mode OS2 duplex fiber optic patch cable with ST-ST connectors is 3 meters long, designed for indoor fiber distribution and termination. Made of halogen-free flame retardant material compliant with RoHS, the cable features UPC polishing for optimal signal quality. It has an external yellow LSZH sheath with an outer diameter of 2.00 mm, providing reliable performance in communication networks. The cable supports over 500 insertion cycles, meets IEC standards, and is suitable for applications requiring high-quality, durable fiber interconnections in a safe, environmentally friendly design.
Phoenix Contact 1115563 Fiber Optic Patch Cable Specifications:
- Cable length: 3.00 meters
- Cable type: Single-mode fiberglass
- External sheath color: Yellow
- External cable diameter: 2.00 mm
- Cable weight: 5.30 kg/km
- Material: LSZH (Low Smoke Zero Halogen)
- Flammability rating: UL 94V-0
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Insertion/withdrawal cycles: 500
- Ambient temperature: -20°C to 60°C
- Resistance to oil: Not resistant
- Concentration of fumes: IEC 61034
- Compliance: China RoHS, IEC standards
Buy the Phoenix Contact Series FO Patch Cable: 1115563
Experience premium fiber optic connectivity with this high-quality single-mode OS2 duplex patch cable by Phoenix Contact. Measuring 3 meters, it features ST connectors for stable, low-loss connections ideal for indoor fiber distribution. The yellow LSZH sheath ensures safety and environmental compliance, while UL 94V-0 rating confirms fire resistance. Designed for over 500 connection cycles, it offers durability and long-term reliability. Perfect for telecommunications, data centers, and industrial networks, this cable delivers high performance with robust standards compliance and eco-friendly features. Buy now for efficient, secure fiber optic communication.
Get Phoenix Contact 1115563 today—built for high-performance fiber optic connections and reliable indoor use.
Frequently Asked Questions
Where can I buy Phoenix Contact 1115563?
You can click on the BUY or RFQ button to purchase 1115563 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1115563?
You can download the 1115563 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1115563?
Phoenix Contact
