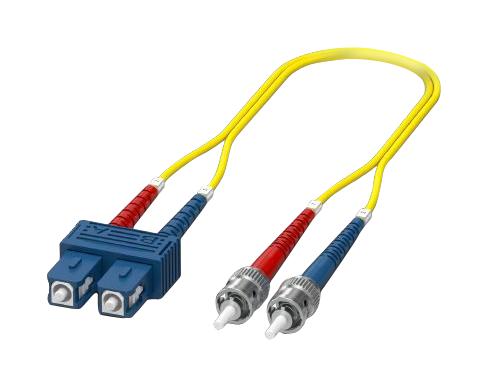

Phoenix Contact 1115581 Fiber Optic Patch Cable
This is a single-mode OS2 duplex fiber optic patch cable designed for indoor use in fiber optics distribution and termination devices. Made of halogen-free flame retardant material, it complies with IEC standards and features UPC polishing for optimal signal transmission. The cable has a length of 2 meters, made from glass fiber with an outer diameter of 2.00 mm, and is rated for over 500 insertion and withdrawal cycles. Its yellow LSZH sheath ensures safe and environmentally friendly operation, suitable for high-performance fiber optic networking applications.
Phoenix Contact 1115581 Fiber Optic Patch Cable Specifications:
- Cable length: 2.00 meters
- Cable type: Single-mode fiberglass
- Cable structure: Figure 8 cable
- External sheath color: Yellow
- External cable diameter: 2.00 mm
- Cable weight: 5.30 kg/km
- Outer sheath material: LSZH (Low Smoke Zero Halogen)
- Flammability rating: UL 94V-0
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Environmental compliance: China RoHS, IEC 60754-2
- Resistance: Not resistant to oil, gasoline, acids, and lyes
- Fume concentration: IEC 61034 compliant
- Ambient temperature (storage/transport): -20°C to 60°C
- Insertion/withdrawal cycles: >500
Buy the Phoenix Contact Series Fiber Optic Patch Cable: 1115581
Order the Phoenix Contact fiber optic patch cable 1115581 online today for dependable indoor fiber optic solutions. This 2-meter duplex OS2 cable features a yellow LSZH sheath for fire safety, halogen-free and environmentally friendly materials, and UPC polishing for optimal signal clarity. Designed to withstand over 500 insertion cycles, it’s ideal for distribution and termination in high-performance network setups. Easy to install, compliant with IEC standards, and perfect for secure, high-speed data transmission in sensitive environments.
Buy Phoenix Contact fiber optic patch cable 1115581 now and ensure reliable high-speed indoor fiber connections with superior performance and safety.
Frequently Asked Questions
Where can I buy Phoenix Contact 1115581?
You can click on the BUY or RFQ button to purchase 1115581 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1115581?
You can download the 1115581 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1115581?
Phoenix Contact
