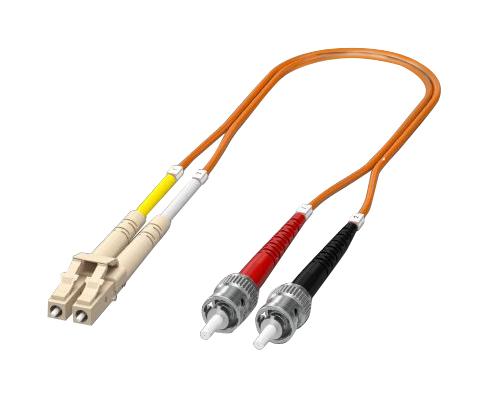

Phoenix Contact 1115585 Fiber Optic Jumper
This 3-meter multi-mode OM2 fiber optic jumper features an LC-ST connector interface with UPC polishing, designed for indoor fiber optic distribution and termination. Made from halogen-free, flame-retardant material, it complies with IEC standards and UL 94V-0 classification. The cable has an orange LSZH outer sheath, external diameter of 2.00 mm, and a weight of 5.30 kg/km. Suitable for high-performance data transmission, it withstands up to 500 insertion cycles and operates within a temperature range of -20°C to 60°C, ensuring durability and safety in critical applications.
Phoenix Contact 1115585 Fiber Optic Jumper Specifications:
- Cable type: Multimode fiberglass
- Cable structure: Figure 8 cable
- External sheath: LSZH, orange color
- External diameter: 2.00 mm
- Length: 3.00 meters
- Weight: 5.30 kg/km
- Flammability rating: UL 94V-0
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Resistant to: Dust, moisture; Not oil resistant
- Ambient temperature: -20°C to 60°C
- Number of insertion/withdrawal cycles: 500
- Conforms to: IEC 60754-2, IEC 61034
- Environmental: RoHS compliant, 50-year use period, no corrosive fumes
- Connector type: LC-ST, UPC polish
Buy the Buy Phoenix Contact Fiber Optic Cable Part Number 1115585 Online
Order the Phoenix Contact fiber optic jumper 1115585 online today and benefit from a high-quality, reliable 3-meter multimode OM2 cable. Featuring LC-ST connectors with UPC polishing, it is ideal for indoor fiber optic distribution and termination. Made from halogen-free, flame-retardant LSZH material, it ensures safety and environmental compliance. The cable withstands 500 insertion cycles, operates efficiently within -20°C to 60°C, and is compliant with IEC and UL standards. Perfect for demanding data transmission applications requiring durability and safety.
Get Phoenix Contact fiber optic cable 1115585 today—designed for reliable indoor fiber distribution with halogen-free LSZH sheath and high durability.
Frequently Asked Questions
Where can I buy Phoenix Contact 1115585?
You can click on the BUY or RFQ button to purchase 1115585 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1115585?
You can download the 1115585 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1115585?
Phoenix Contact
