Phoenix Contact 1115589 fiber optic cable

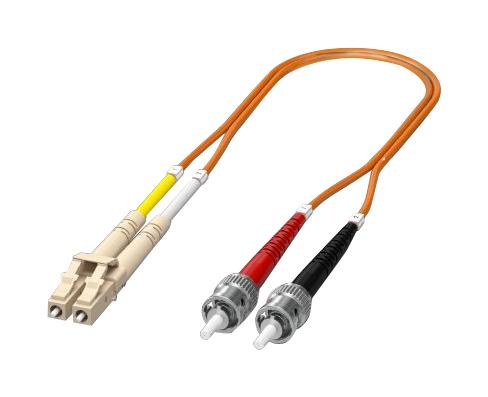

This fiber optic cable jumper features a multi-mode OM2 duplex design with LC-ST connectors and UPC polishing, ideal for indoor fiber optic distribution and termination. Made from halogen-free, flame-retardant materials, it conforms to IEC standards and is IEC 61300-3-4 and IEC 61300-3-6 compliant. The orange external sheath has a diameter of 2.00 mm for durability, with a cable length of 0.5 meters. It withstands ambient temperatures from -20°C to 60°C, supports over 500 insertion cycles, and is RoHS compliant, ensuring safety and environmental friendliness for high-performance fiber optic applications.
Phoenix Contact 1115589 fiber optic cable Specifications:
- Cable type: Multimode fiberglass
- Cable structure: Figure 8 cable
- External sheath color: Orange
- External cable diameter: 2.00 mm
- Cable weight: 5.30 kg/km
- Material: LSZH (Low Smoke Zero Halogen)
- Flammability rating: UL 94VO
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Ambient temperature: -20°C to 60°C
- Insertion/withdrawal cycles: 500
- Resistance to oil: Not resistant
- Fume concentration: IEC 61034 compliant
- Environmental: RoHS compliant, 50-year environmentally friendly use period
Buy the Phoenix Contact Series Fiber Optic Cable: FOC-LC:PA-ST:PA-OM2:D01/0.5
Enhance your fiber optic network with this high-quality multi-mode OM2 duplex jumper featuring LC-ST connectors, 0.5 meters in length, with flame retardant and RoHS compliant materials. Designed for indoor use, it provides reliable, durable performance, supporting over 500 insertion cycles, with an external orange LSZH sheath for safety and environmental compliance. Ideal for distribution and termination, this fiber optic jumper ensures excellent signal transmission, flexibility, and adherence to international standards, making it a perfect choice for professional installation and upgrading existing fiber networks.
Get Phoenix Contact FOC-LC:PA-ST:PA-OM2:D01/0.5 today—built for high-performance fiber optic connections in indoor environments.
Frequently Asked Questions
Where can I buy Phoenix Contact 1115589?
You can click on the BUY or RFQ button to purchase 1115589 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1115589?
You can download the 1115589 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1115589?
Phoenix Contact
