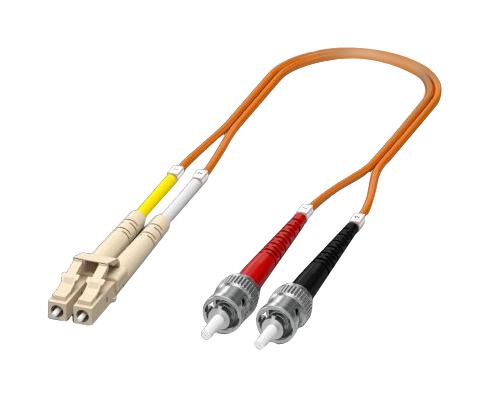

Phoenix Contact 1115590 Fiber Optic Jumper
This multimode OM1 fiber optic jumper features a duplex LC-ST connectors with UPC polishing, suitable for indoor fiber optic distribution and installation. Made of halogen-free flame-retardant LSZH material, it ensures safety and environmental compliance. The cable is 3 meters long, with an external diameter of 2.00 mm, and is rated for up to 500 insertion cycles. Compliant with IEC 61300 standards and UL 94 VO flammability rating, it provides reliable connectivity for fiber optic communication systems, resistant to heat and safe for fire safety requirements.
Phoenix Contact 1115590 Fiber Optic Jumper Specifications:
- Cable type: Multimode fiberglass
- Cable length: 3.00 meters
- External sheath: LSZH material, orange color
- External diameter: 2.00 mm
- Cable weight: 5.30 kg/km
- Flammability rating: UL 94 VO
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Temperature range: -20°C to 60°C
- Insertion/withdrawal cycles: 500
- Resistance to oil: Not resistant
- Fume concentration: IEC 61034
- Halogen-free: Yes, IEC 60754-2
- Behavior in fire: No toxic fumes
- Resistance: Suitable for indoor distribution and termination
Buy the Phoenix Contact Series OM1 Fiber Optic Jumper: 1115590
Enhance your fiber optic communication with this high-quality multimode OM1 fiber optic jumper. Featuring LC-ST connectors, 3-meter length, and UL 94 VO flame rating, it offers reliable indoor performance. Made from halogen-free LSZH materials, it ensures safety and environmental compliance, suitable for fiber distribution and termination. Easy to install, resistant to heat, and capable of 500 insertion cycles, this cable is ideal for high-performance networks requiring durable and safe connectivity. Purchase online today for fast, dependable delivery.
Order your Phoenix Contact Series OM1 fiber optic jumper 1115590 today and ensure reliable, safe, and high-quality fiber optic connections for your network.
Frequently Asked Questions
Where can I buy Phoenix Contact 1115590?
You can click on the BUY or RFQ button to purchase 1115590 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1115590?
You can download the 1115590 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1115590?
Phoenix Contact
